Euphoria System Shower system with bath thermostat for wall mounting
Product Number
26490000
EAN
4005176425820
Colour
chrome
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed thermostat with Aquadimmer function
- separate diverter for hand shower
- bath inlet
- head shower and hand shower (not included)
- gliding element
- Rotaflex Metal Long-Life TwistStop shower hose 1750 mm (28 025)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE Long-Life finish
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- protected against backflow
Technical Product Information
CAD Data

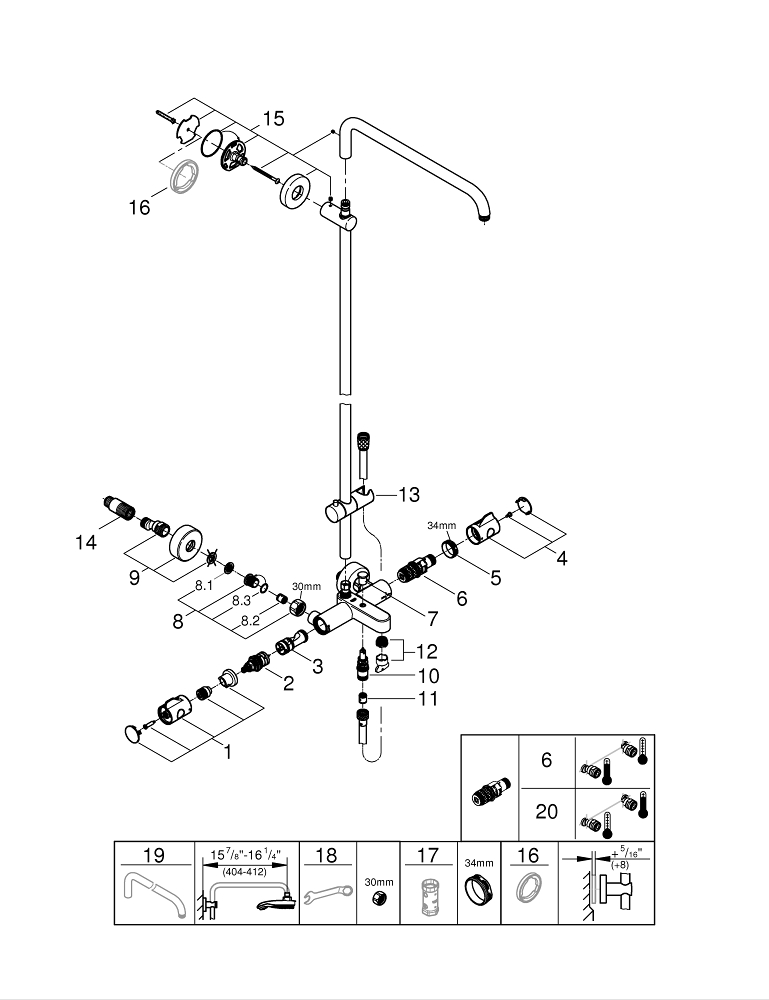

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Shut-off handle Aquadimmer | 49056000 |
| 2 | Aquadimmer | 47364000 |
| 3 | Water flow | 47887000 |
| 4 | Temperature control handle | 47981000 |
| 5 | Fitting ring | 47743000 |
| 6 | Thermostatic compact cartridge 1/2" | 47885000 |
| 6 | Thermostatic compact cartridge 1/2" | 49110000 |
| 7 | Diverter knob | 65648000 |
| 8 | Non-return valve | 47189000 |
| 8.1 | Dirt strainer | 0726400M |
| 8.2 | Non-return valve | 08565000 |
| 8.3 | O-ring ø 17 x ø 2 | 0305500M |
| 9 | S-union | 12662000 |
| 10 | Diverter | 65655000 |
| 11 | Non-return valve | 08565000 |
| 12 | Mousseur | 13926000 |
| 13 | Glide element | 12140000 |
| 14 | Shower rail holder | 48279000 |
| 15 | Compensation disc | 27180000* |
| 16 | Socket spanner | 19332000* |
| 17 | Special spanner | 19377000* |
| 18 | Shower arm for shower systems | 14047000* |
