Euphoria System 230 Shower system with thermostat for wall mounting
Product Number
26187000
EAN
4005176310744
Colour
chrome
Step into the ultimate in luxury showering with the GROHE Euphoria XXL 230 shower system
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed thermostat with Aquadimmer function
- allows change between:
- head shower 230 (27 479 000)
- material: metal
- spray pattern: Rain
- maximum flow rate (at 3 bar): 11.5 l/min
- with ball joint
- rotation angle ± 15°
- Euphoria Cube Stick hand shower (27 698)
- maximum flow rate (at 3 bar): 8 l/min
- adjustable in height with gliding element (12 140 000)
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- SpeedClean anti-limescale system
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- GROHE MetalGrip ergonomically shaped metal handles
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
- optional upgrade: GROHE EasyReach tray (26 362), sold separately
Technical Product Information

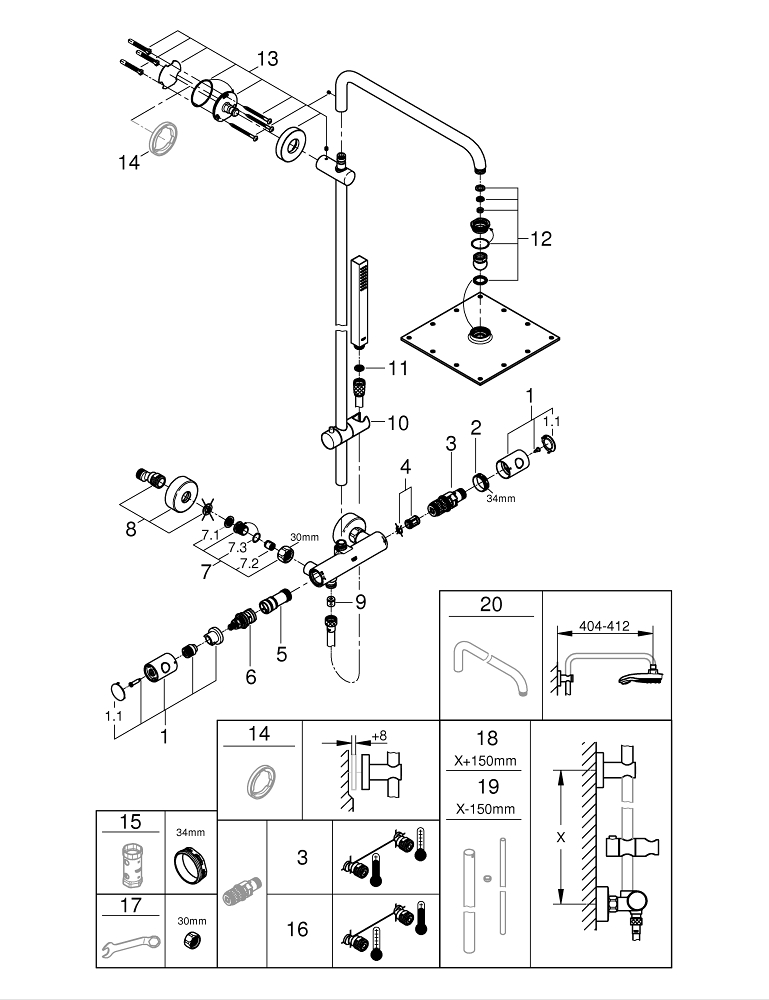

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Metal handle 1/2" | 47984000 |
| 1.1 | Cover cap | 6458500M |
| 2 | Fitting ring | 47743000 |
| 3 | Thermostatic compact cartridge 1/2" | 47439000 |
| 4 | Buffer | 47398000 |
| 5 | Water flow | 47751000 |
| 6 | Aquadimmer | 12433000 |
| 7 | Non-return valve | 47189000 |
| 7.1 | Dirt strainer | 0726400M |
| 7.2 | Non-return valve | 08565000 |
| 7.3 | O-ring ø 17 x ø 2 | 0305500M |
| 8 | S-union | 12662000 |
| 9 | Non-return valve | 08565000 |
| 10 | Glide element | 12140000 |
| 11 | Dirt strainer | 0700200M |
| 12 | Spare part set | 48471000 |
| 13 | Shower rail holder | 48279000 |
| 14 | Compensation disc | 27180000* |
| 15 | Socket spanner | 19332000* |
| 16 | GROHE TurboStat cartridge 1/2" | 47175000* |
| 17 | Special spanner | 19377000* |
| 18 | Shower system pipe for retrofitting | 48053000* |
| 19 | Shower system pipe for retrofitting | 48054000* |
| 20 | Shower arm for shower systems | 14047000* |
