Euphoria System Shower system with single lever bath mixer for wall mounting
Product Number
26321000
EAN
4005176325885
Colour
chrome
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed single-lever bath mixer with diverter handle
- separate diverter for hand shower
- gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE SilkMove 35 mm ceramic cartridge
- GROHE Long-Life finish
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

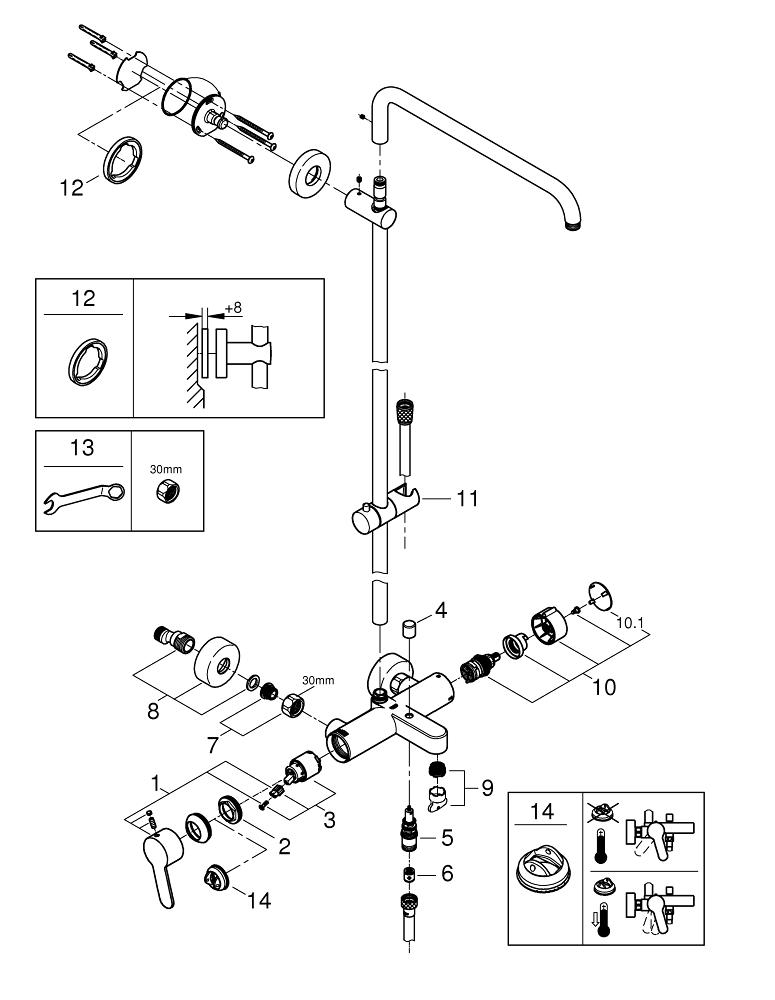

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46750000 |
| 2 | Screw coupling | 46460000 |
| 3 | Cartridge | 46374000 |
| 4 | Diverter knob | 64309000 |
| 5 | Diverter | 65655000 |
| 6 | Non-return valve | 08565000 |
| 7 | Screw connection 1/2" | 45044000 |
| 8 | S-union | 12662000 |
| 9 | Mousseur | 13926000 |
| 10 | Diverter | 46921000 |
| 10.1 | Cover cap | 4788300M |
| 11 | Glide element | 12140000 |
| 12 | Compensation disc | 27180000* |
| 13 | Special spanner | 19377000* |
| 14 | Temperature limiter | 46375000* |
