Euphoria System Shower system with single lever mixer for wall mounting
Product Number
26240000
EAN
4005176316302
Colour
chrome
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed single-lever shower mixer with diverter
- gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- minimum flow rate 7 l/min
- suitable for instantaneous heaters from 18 kW/h
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

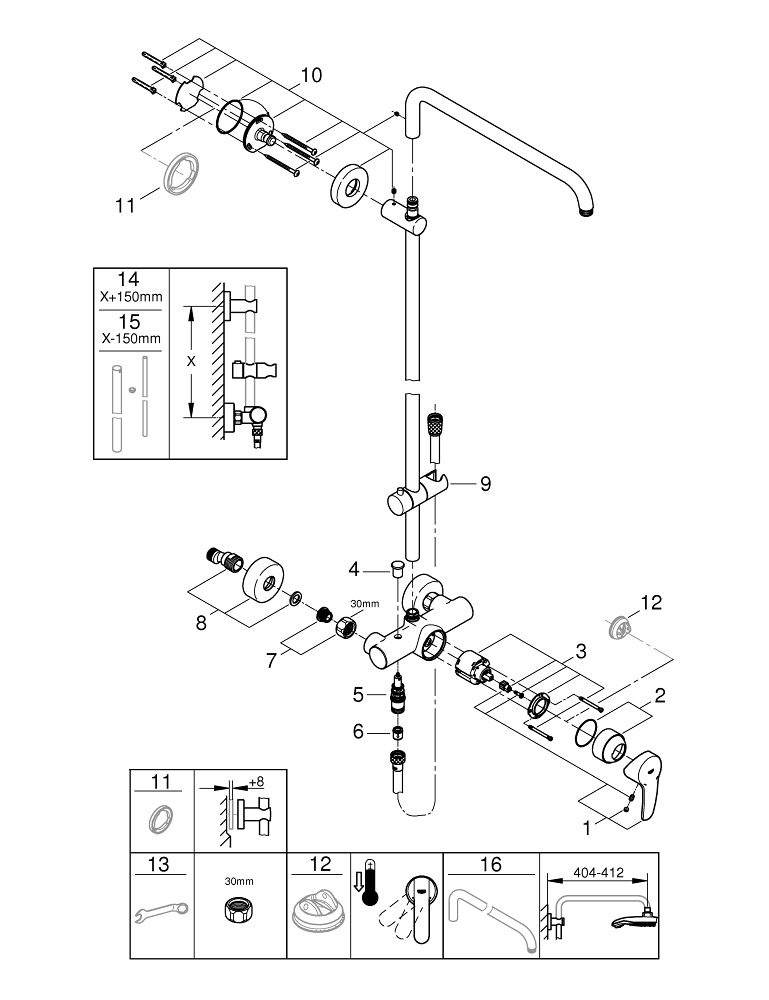

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46577000 |
| 2 | Cap | 46025000 |
| 3 | Cartridge | 46048000 |
| 4 | Diverter knob | 65648000 |
| 5 | Diverter | 65655000 |
| 6 | Non-return valve | 08565000 |
| 7 | Screw connection 1/2" | 45044000 |
| 8 | S-union | 12662000 |
| 9 | Glide element | 12140000 |
| 10 | Shower rail holder | 48279000 |
| 11 | Compensation disc | 27180000* |
| 12 | Temperature limiter | 46375000* |
| 13 | Special spanner | 19377000* |
| 14 | Shower system pipe for retrofitting | 48053000* |
| 15 | Shower system pipe for retrofitting | 48054000* |
| 16 | Shower arm for shower systems | 14047000* |
