Euphoria System 260 Shower system with single lever mixer for wall mounting
Product Number
27473001
EAN
4005176417900
Colour
chrome
The GROHE Euphoria 260 shower system – bathroom comfort that’s built to last!
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed single-lever shower mixer with diverter
- allows change between:
- head shower Euphoria 260 (26 457)
- 3 spray patterns:
- Rain, SmartRain, Jet
- with ball joint
- rotation angle ± 15°
- hand shower Euphoria 110 Massage (27 239)
- 3 spray patterns:
- Rain, SmartRain, Massage
- adjustable in height with gliding element
- Silverflex shower hose 1750 mm 1/2" x 1/2" (28 388)
- GROHE Water Saving 9.5 l/min flow limiter
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- GROHE SprayDimmer (stepless flow rate reduction)
- SpeedClean anti-limescale system
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
Technical Product Information

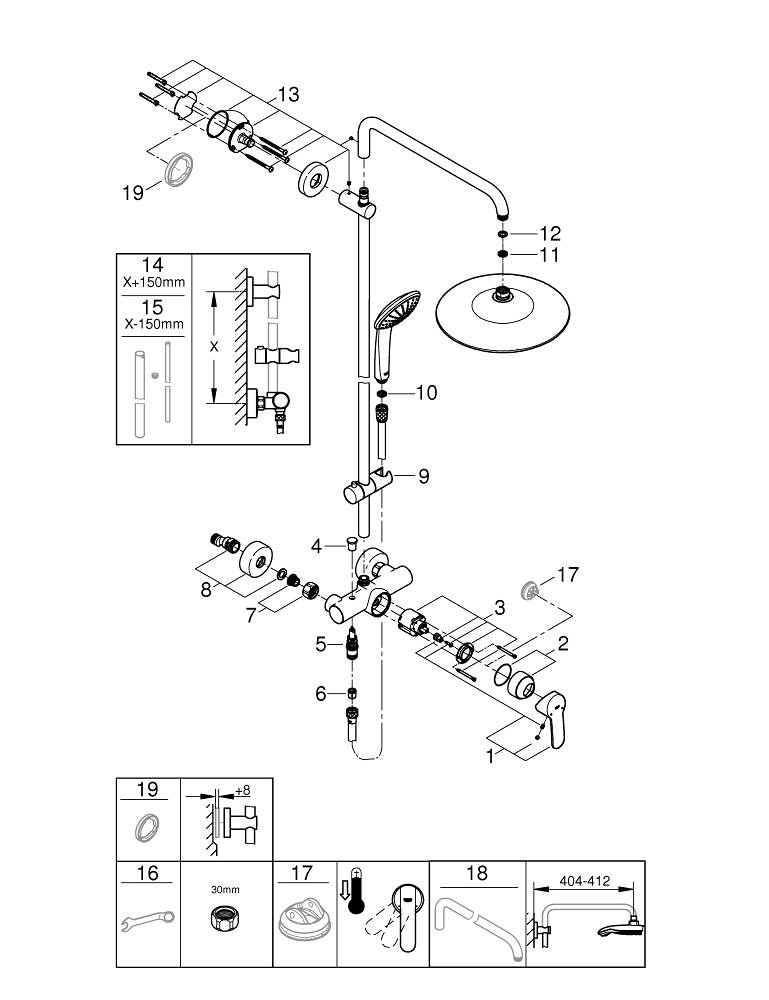

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46726000 |
| 2 | Cap | 46025000 |
| 3 | Cartridge | 46048000 |
| 4 | Diverter knob | 65648000 |
| 5 | Diverter | 65655000 |
| 6 | Non-return valve | 08565000 |
| 7 | Screw connection 1/2" | 45044000 |
| 8 | S-union | 12662000 |
| 9 | Glide element | 12140000 |
| 10 | Dirt strainer | 0700200M |
| 11 | Dirt strainer | 48007000 |
| 12 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 13 | Shower rail holder | 48279000 |
| 14 | Shower system pipe for retrofitting | 48053000* |
| 15 | Shower system pipe for retrofitting | 48054000* |
| 16 | Special spanner | 19377000* |
| 17 | Temperature limiter | 46375000* |
| 18 | Shower arm for shower systems | 14047000* |
