Concetto Single lever faucet L size
Product Number
23737001
EAN
4005176369704
Colour
chrome
Product main features
- GROHE SilkMove 35 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE FastFixation Plus installation system
- 7" swivel spout reach
- flexible connection hoses
- metal pop-up drain
- max. flow rate 4.5 l/min (1.2 gpm)
- optional temperature limiter ref. no. 46 375
Technical Product Information
CAD Data

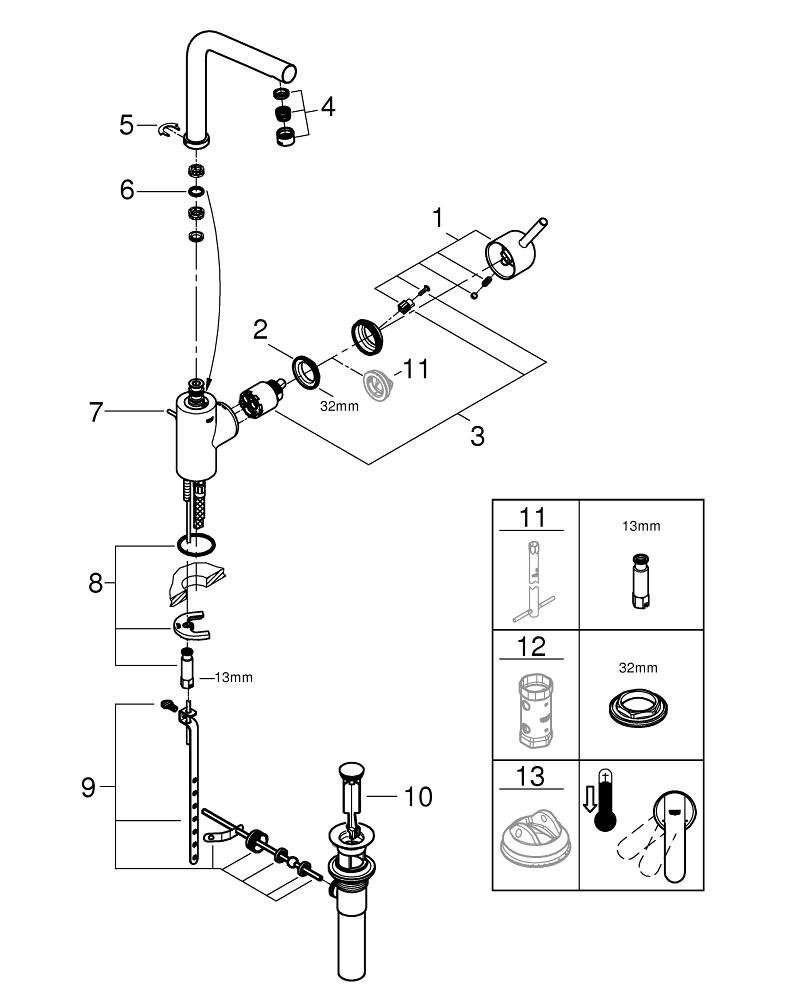

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46754000 |
| 2 | Screw coupling | 46460000 |
| 3 | Cartridge | 46374000 |
| 4 | Mousseur | 48341000 |
| 5 | Safety ring | 4825700M |
| 6 | Sealing washer | 0128500M |
| 7 | Pop-up rod | 46739000 |
| 8 | Shank mounting kit | 46671000 |
| 9 | Ball rod | 48332000 |
| 10 | Plug | 48331000 |
| 11 | Mounting wrench | 19017000* |
| 12 | Socket spanner | 19332000* |
| 13 | Temperature limiter | 46375000* |
