Concetto Single-lever shower mixer 1/2″
Product Number
32699001
EAN
4005176888946
Colour
chrome
Product main features
- wall mounted
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge with Eco-Override-Stop
- GROHE Long-Life finish
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- shower bottom outlet 1/2" with integrated non return valve
- S-unions
- optional temperature limiter ref. no. 46 308
- protected against backflow
- noise classification I in accordance with DIN 4109
Technical Product Information
CAD Data

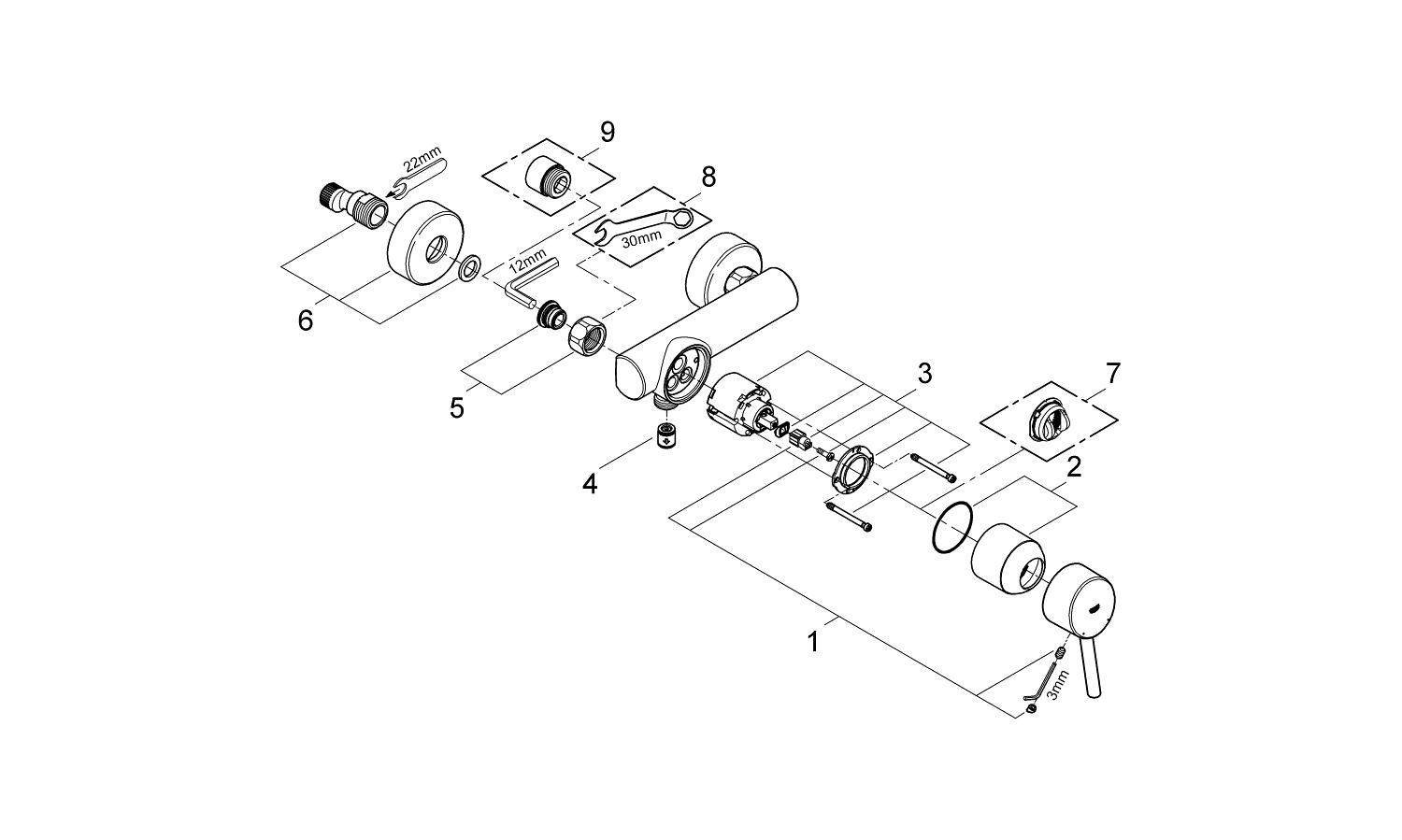

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46723000 |
| 2 | Cap | 46578000 |
| 3 | Cartridge | 46588000 |
| 4 | Non-return valve | 08565000 |
| 5 | Screw connection 1/2" | 45044000 |
| 6 | S-union | 12662000 |
| 7 | Temperature limiter | 08791000* |
| 8 | Special spanner | 19377000* |
| 9 | Extension 3/4", 20 mm | 0713000M* |
