Concetto Four-hole single-lever bath combination

Product Number
19576001
EAN
4005176888625
Colour
chrome

Product Description

  • GROHE SilkMove 46 mm ceramic cartridge
  • GROHE Long-Life finish
  • consisting of:
  • pre-assembled spout fixing
  • single lever mixer operating element
  • bath inlet with mousseur
  • diverter bath/shower
  • Euphoria Cosmopolitan hand shower (27 400)
  • metal shower hose 2000 mm
  • flexible connection hoses
  • connection for shower hose
  • protected against backflow
  • can be used with 29 037 000
  • min. recommended pressure 1.0 bar

Technical Information

CAD Data

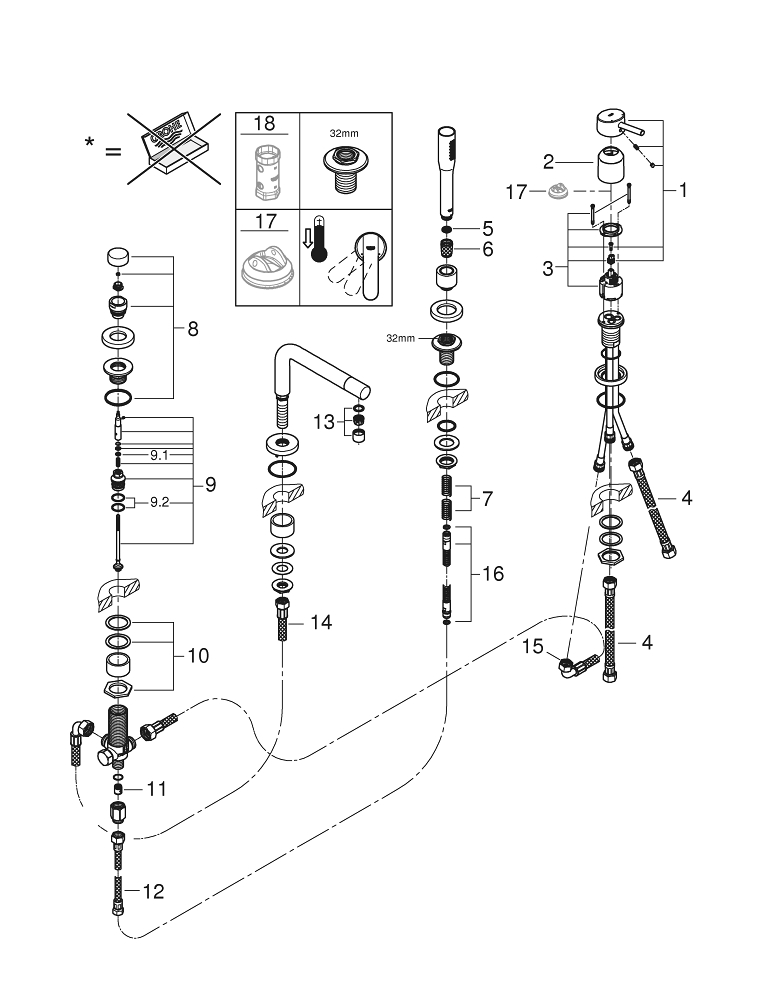

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Lever 46723000
2 Cap 46727000
3 Cartridge 46048000
4 Connecting hose 07227000
5 Dirt strainer 0700200M
6 Cone nut 08864000
7 Compression spring 00869000
8 Diverter knob 46721000
9 Diverter 45443000
9.1 Sealing washer Ø 6 x Ø 2 0128300M
9.2 Sealing washer 0120500M
10 Replacement kit for shank fastening 45444000
11 Non-return valve 08565000
12 Connecting hose 07300000
13 Flow straightener 46724000
14 Connecting hose 48018000
15 Connecting hose 48017000
16 Metal shower hose 28146000
17 Temperature limiter 46375000*
18 Socket spanner 19332000*
