Zedra Single-lever sink mixer 1/2″
Product Number
32553000
EAN
4005176864506
Colour
chrome
Product main features
- single hole installation
- GROHE LongLife finish
- GROHE SilkMove 46 mm ceramic cartridge
- Pull-Out spray for greater flexibility
- Easy Docking Function guarantees easy retraction and smooth docking back to the starting position
- Dual Spray - switch between mousseur and SpeedClean shower jet using diverter
- automatic return to mousseur
- adjustable flow rate limiter
- swivel tubular spout
- swivel area 360°
- integrated non-return valve
- protected against backflow
- flexible connection hoses
- rapid installation system
Technical Product Information
CAD Data

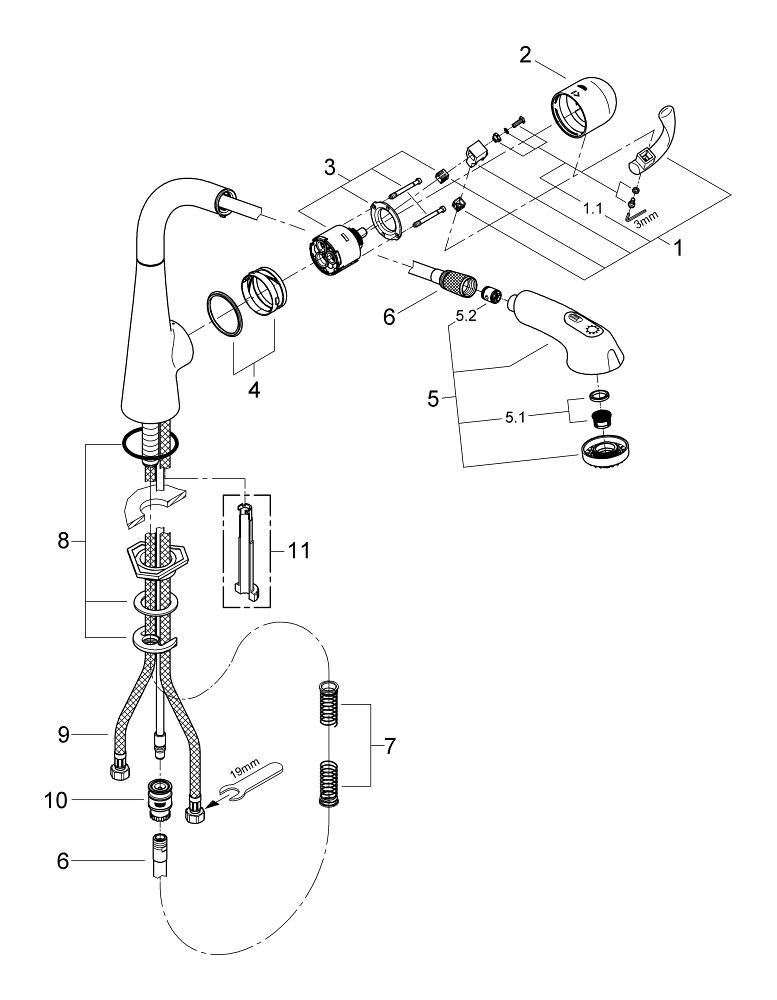

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46654000 |
| 1.1 | Fixing set | 46310000 |
| 2 | Cap | 46655000 |
| 3 | Cartridge | 46048000 |
| 4 | Guide and slide ring | 46632V00 |
| 5 | Pull out spray | 46656NC0 |
| 5.1 | Mousseur | 13952000 |
| 5.2 | Non-return valve | 08565000 |
| 5.3 | Dirt strainer | 0676800M |
| 6 | Metal hose | 46092000 |
| 7 | Compression spring | 07240000 |
| 8 | Shank mounting kit | 46345000 |
| 9 | Flexible connection hose, 470 | 45484000 |
| 10 | Quick coupling | 46338000 |
| 11 | Disassembling key | 19132000* |
