GROHE Red Duo Faucet and L size boiler
Product Number
30091DC1
EAN
4005176989292
Colour
supersteel
Product main features
- consisting of:
- GROHE Red Duo single-lever sink mixer
- single hole installation
- C-spout
- GROHE ChildLock push buttons for boiling water
- TÜV certified triple electronic safeguards against accidental activation of boiling water
- GROHE Long-Life finish
- GROHE SilkMove 28 mm ceramic cartridge
- insulated tubular spout
- swivel area 150°
- separate water ways
- flexible connection hoses
- connection to GROHE Red boiler
- GROHE Red boiler L size
- reservoir for boiling and hot water
- 5.5 liter 100° C boiling water
- 7 liter total capacity
- required inlet pressure: 1-7 bar
- with flexible connection hose and outlet for boiling water
- CE approved
- power supply 230 V 50 Hz
- max. power consumption 2100 W
- standby power consumption 15 W
- energy efficiency class A
- GROHE Blue S-Size filter starter set
- for protection of the boiler from limescale
- capacity 600 l at 20° dKH
- flow rate measuring unit
Technical Product Information
CAD Data

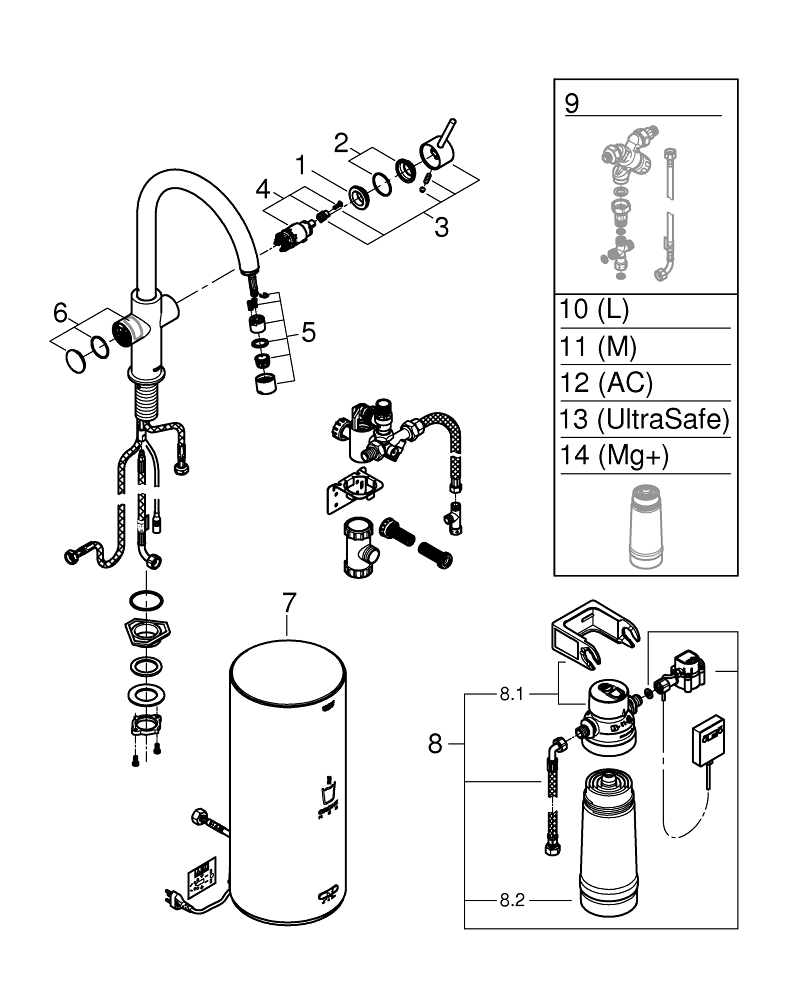

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Fitting ring | 07419000 |
| 2 | Cap | 46581DC0 |
| 3 | Lever | 46957DC0 |
| 4 | Cartridge | 46580000 |
| 5 | Flow control | 48370DC0 |
| 6 | Operating unit | 46997DC0 |
| 7 | Boiler Size L | 40866001 |
| 8 | S-size filter starter set | 40438001 |
| 8.1 | Filter head | 64508001 |
| 8.2 | Filter S-Size | 40404001 |
| 9 | Mixing valve | 40841001* |
| 10 | Filter L-Size | 40412001* |
| 11 | Filter M-Size | 40430001* |
| 12 | Activated carbon filter | 40547001* |
| 13 | UltraSafe filter | 40575001* |
| 14 | Magnesium+ filter | 40691001* |
