Zedra Single-lever sink mixer 1/2″
Product Number
31203000
EAN
4005176889912
Colour
chrome
Product main features
- shut off valve
- single hole installation
- GROHE Long-Life finish
- GROHE SilkMove 46 mm ceramic cartridge
- flow straightener
- pull-out mousseur spray
- diverter: laminar spray/SpeedClean shower jet
- automatic return to laminar spray
- swivel area 140°
- protected against backflow
- flexible connection hoses
- rapid installation system
Technical Product Information
CAD Data

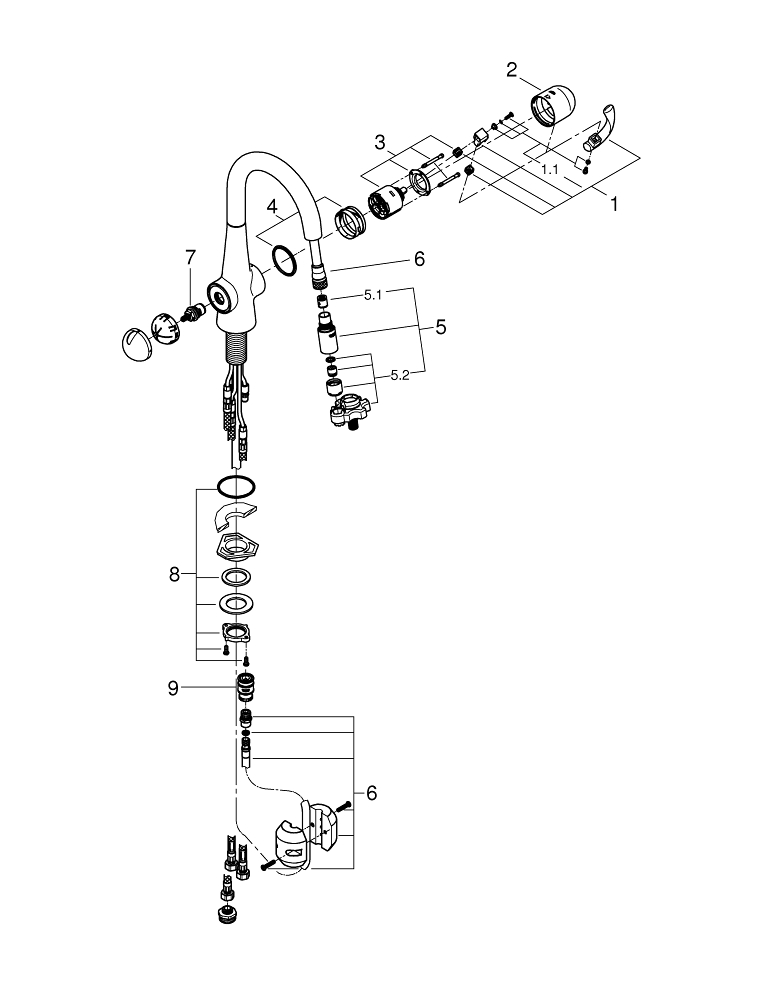

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Lever | 46654000 |
| 1.1 | Fixing set | 46310000 |
| 2 | Cap | 46655000 |
| 3 | Cartridge | 46048000 |
| 4 | Guide and slide ring | 46632V00 |
| 5 | Pull out spray | 46857000 |
| 5.1 | Non-return valve | 08565000 |
| 5.2 | Flow straightener | 13997000 |
| 6 | Shower hose | 48355000 |
| 7 | Ceramic cartridge | 46318000 |
| 8 | Shank fastening assembly | 48384000 |
| 9 | Quick coupling | 46338000 |
