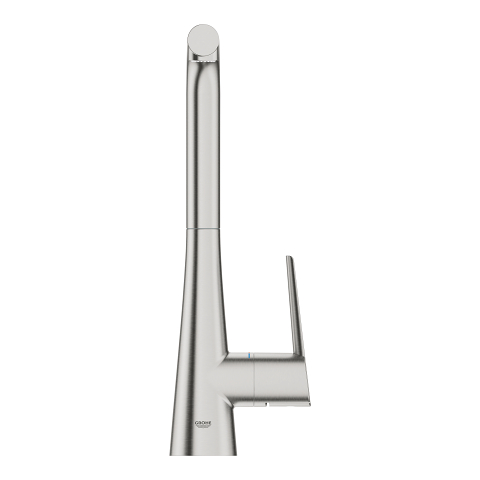

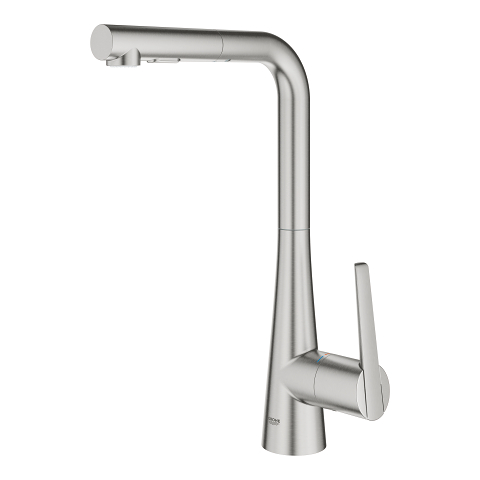

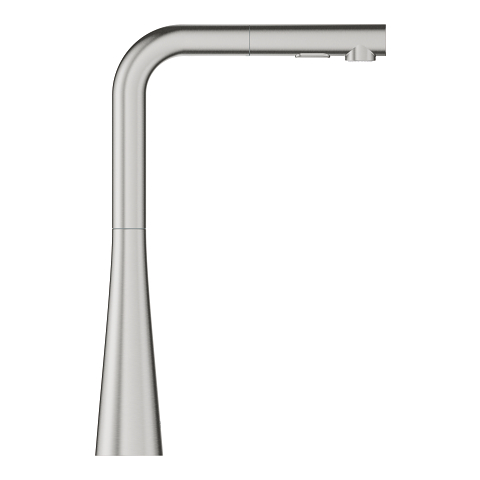

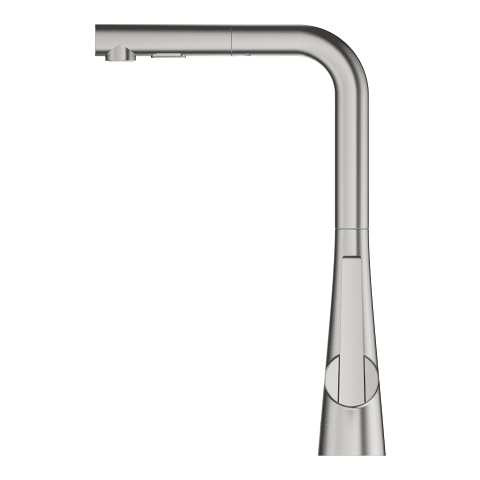

Zedra Single-lever sink mixer 1/2″
Product Number
33893DC2
EAN
4005176466670
Colour
supersteel
Product main features
- single hole installation
- GROHE LongLife finish
- GROHE SilkMove 35 mm ceramic cartridge
- Pull-Out spout for greater flexibility
- Dual Spray - switch between laminar spray and SpeedClean shower jet using diverter
- automatic return to laminar spray
- adjustable flow rate limiter
- swivel tubular spout
- swivel area 360°
- protected against backflow
- flexible connection hoses
- metal fixation set
- Protected Water Ways no contact of water with lead or nickel inside the tap
- maximum flow rate (at 3 bar): 6 l/min
Technical Product Information
CAD Data

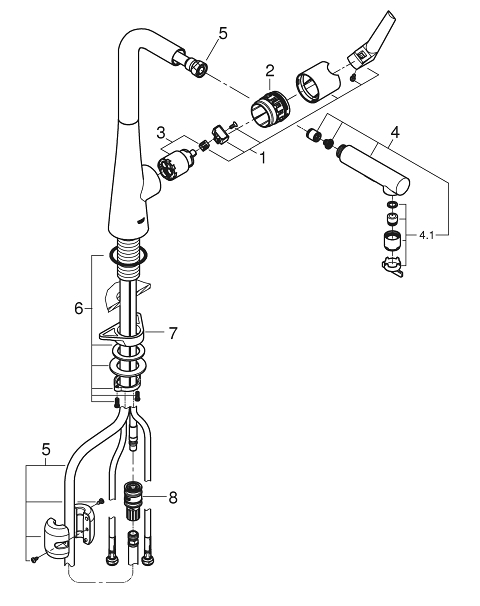

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Lever | 48476DC0 |
| 2 | Screw ring | 48517000 |
| 3 | Cartridge | 46374000 |
| 4 | Pull out spray | 48474DC0 |
| 4.1 | Flow straightener | 48275000 |
| 4.2 | Non-return valve | 08565000 |
| 4.3 | Dirt strainer | 0676800M |
| 5 | Shower hose | 48472000 |
| 6 | Mounting set | 48477000 |
| 7 | Support plate | 05334000 |
| 8 | Snap coupling | 48220000 |
