Parkfield Single-lever sink mixer 1/2″
Product Number
30213DC0
EAN
4005176981999
Colour
supersteel
Product main features
- single hole installation
- swivel tubular spout
- swivel area 360°
- adjustable flow rate limiter
- Pull-Out spray for greater flexibility
- Dual Spray - switch between mousseur and SpeedClean shower jet using diverter
- ball joint glideflex hose
- integrated non-return valve
- automatic return to mousseur
- flexible connection hoses
- rapid installation system
- protected against backflow
- GROHE SpeedClean effortless limescale removal
- GROHE LongLife finish
- GROHE SilkMove 35 mm ceramic cartridge
- GROHE SuperSteel Infinity Finish
- projection 211 mm
- single lever handle
- no backsplash, lever opens to the front
- weight operated pull back mechanism for hose
- 360° ball-joint on hose for flexible handling of spray head
- Stainless steel braided hose
- stainless steel braided supply lines
- forward rotation lever, does not hit backsplash
Technical Product Information
CAD Data

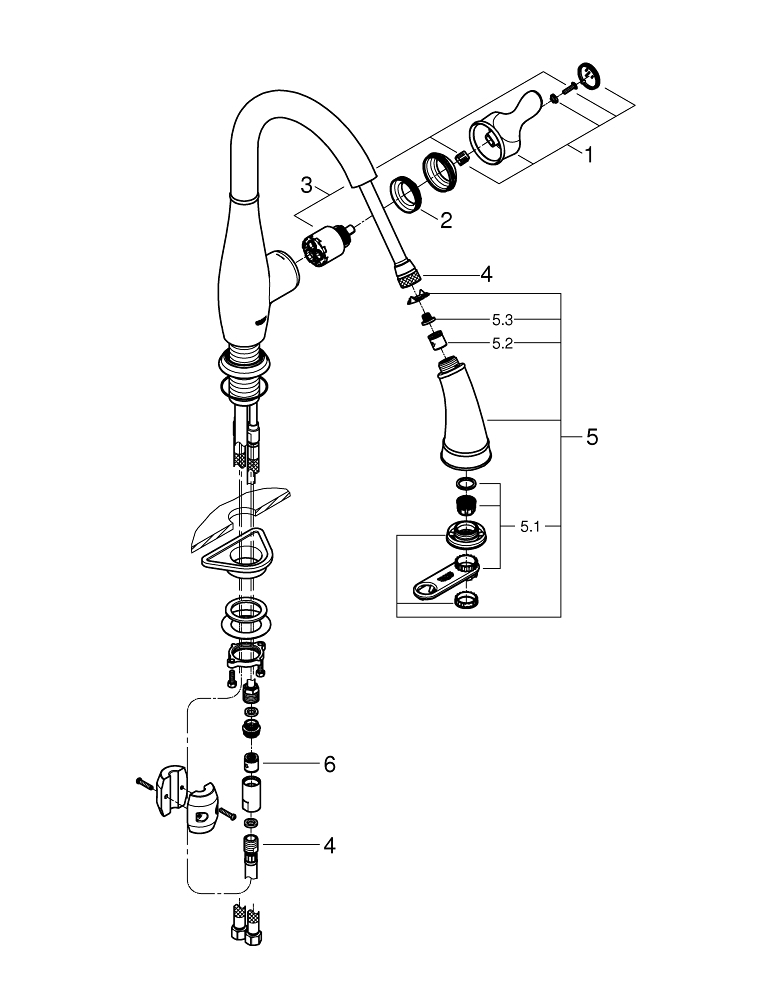

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Lever | 46889DC0 |
| 2 | Screw coupling | 46460000 |
| 3 | Cartridge | 46374000 |
| 4 | Shower hose | 46887000 |
| 5 | Pull out spray | 46970ND0 |
| 5.1 | Mousseur | 46711000 |
| 5.2 | Non-return valve | 08565000 |
| 5.3 | Dirt strainer | 0676800M |
| 6 | Non-return valve | 48224000 |
