GROHE Red Mono Pillar tap and L size boiler
Product Number
30338DC1
EAN
4005176414206
Colour
supersteel
Product main features
- consisting of:
- GROHE Red Mono pillar tap
- single hole installation
- L-spout
- GROHE ChildLock push buttons for boiling water
- TÜV certified triple electronic safeguards against accidental activation of boiling water
- GROHE Long-Life finish
- insulated tubular spout
- swivel area 150°
- connection to GROHE Red boiler
- GROHE Red boiler L size
- reservoir for boiling and hot water
- 5.5 liter 100° C boiling water
- 7 liter total capacity
- required inlet pressure: 1-7 bar
- with flexible connection hose and outlet for boiling water
- CE approved
- power supply 230 V 50 Hz
- max. power consumption 2100 W
- standby power consumption 15 W
- energy efficiency class A
- GROHE Red mixing valve
- for thermostatic mixing of mains and boiling water to generate warm water
- adjustable between 35°C and 75°C
- hot fill and cold fill installation possible
- including 70 cm connection hose, manifold and wall fixation
Technical Product Information
CAD Data

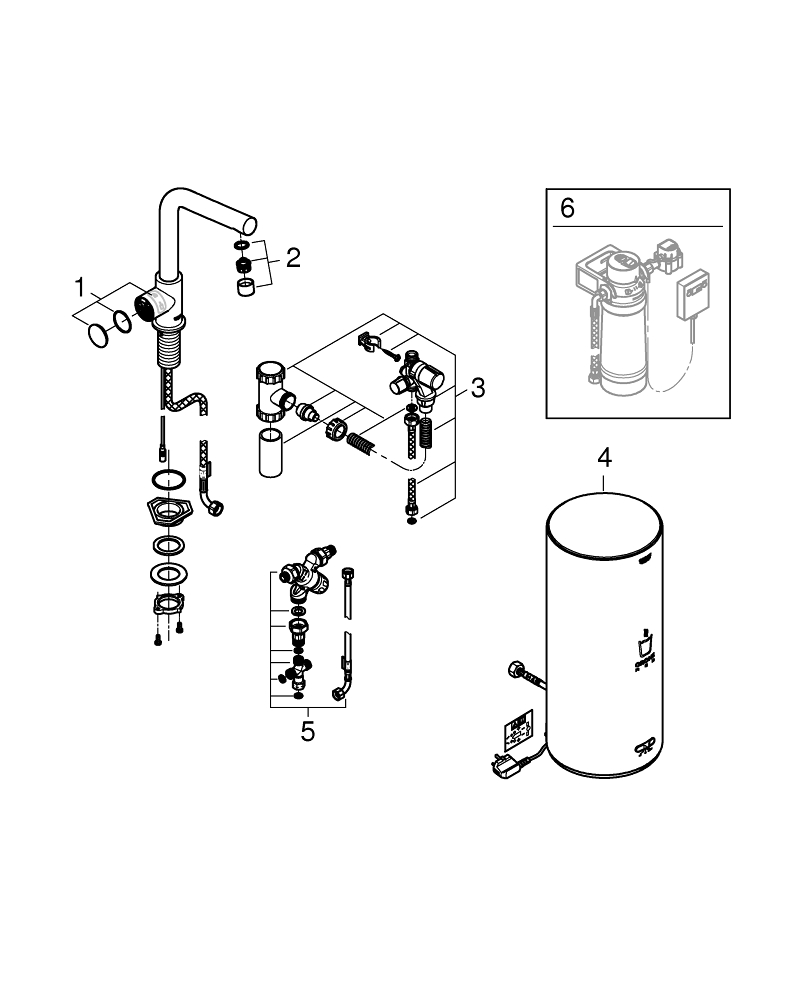

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Operating unit | 46997DC0 |
2 | Mousseur | 13999DC0 |
3 | Safety group | 48372000 |
4 | Boiler Size L | 40831001 |
5 | Mixing valve | 40841001 |
6 | S-size filter starter set | 40438001* |
