Grandera Three-hole basin mixer 1/2″ M-Size
Product Number
20389000
EAN
4005176924101
Colour
chrome
GROHE Grandera – exclusive 3-piece basin tap, style and performance you can trust
Product main features
- valves hot/cold with ceramic headparts 1/2" - 90°
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- GROHE AquaGuide adjustable mousseur 5.7 l/min
- pop-up waste set 1 1/4"
- pressure-proof flexible connection hoses between spout and side valves
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

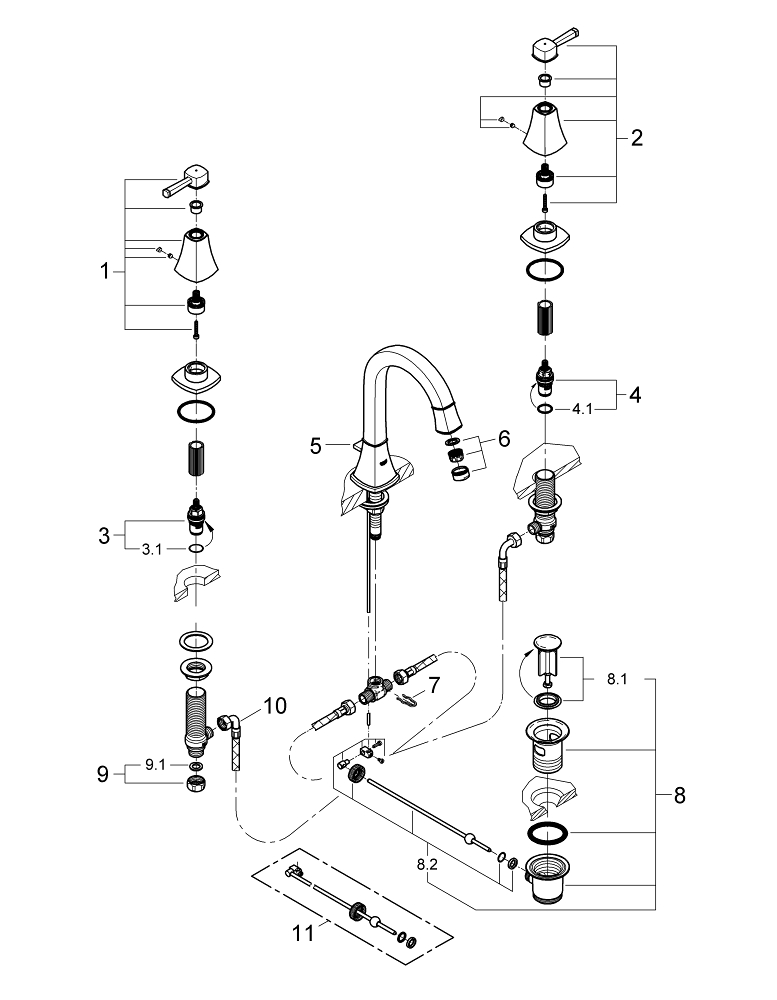

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Grandera handle red | 48198000 |
| 2 | Grandera handle blue | 48199000 |
| 3 | Ceramic headpart 1/2" | 45882000 |
| 3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 4 | Ceramic headpart 1/2" | 45883000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Lift rod | 48200000 |
| 6 | Flow straightener | 46837000 |
| 7 | Fixing clamp | 6554100M |
| 8 | Waste set 1 1/4" | 28910000 |
| 8.1 | Plug | 07182000 |
| 8.2 | Eccentric rod | 07052000 |
| 9 | Coupling nut 1/2" | 1290100M |
| 9.1 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 10 | Flexible connection hose | 45704000 |
| 11 | Eccentric rod | 07341000* |
