Grandera Five-hole bath combination
Product Number
19919000
EAN
4005176924125
Colour
chrome
Product main features
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- consisting of:
- pre-assembled spout fixing
- single lever mixer operating element
- bath spout with mousseur and diverter bath/shower
- Grandera hand shower 7.6 l
- metal shower hose 1500 mm
- flexible connection hoses
- connection for shower hose
- protected against backflow
- can be used with 29 037 000
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

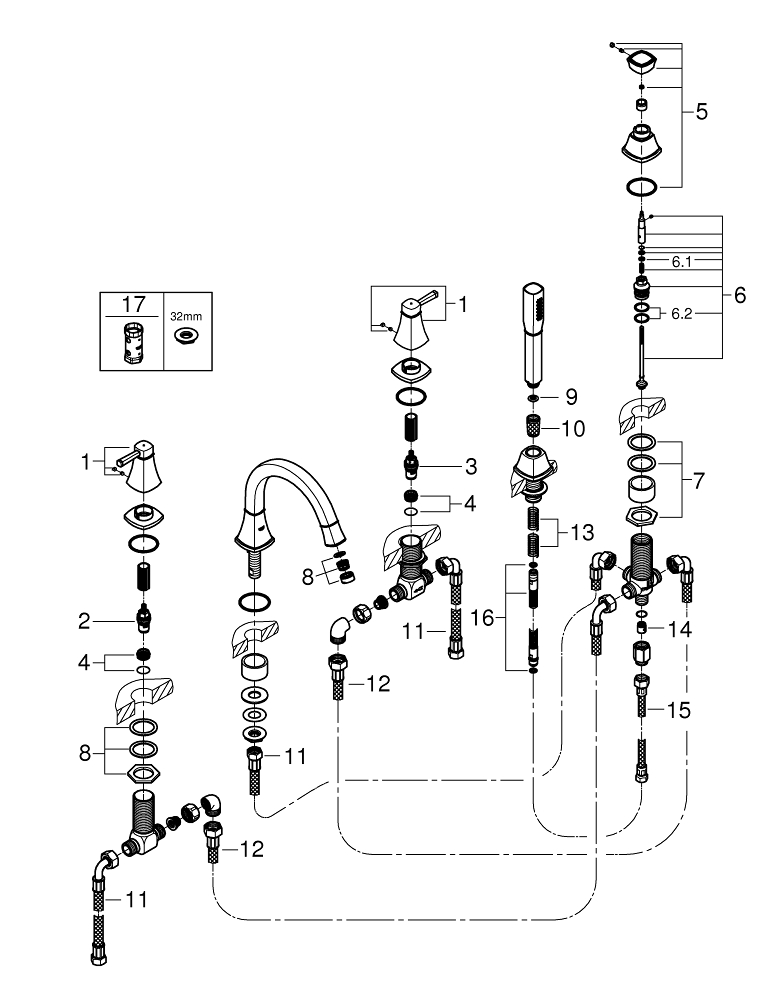

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Handle pair | 48325000 |
| 2 | Ceramic headpart 3/4" | 45888000 |
| 3 | Ceramic headpart 3/4" | 45887000 |
| 4 | Valve seat 3/4" | 45345000 |
| 5 | Diverter knob | 48216000 |
| 6 | Diverter | 45443000 |
| 6.1 | Sealing washer Ø 6 x Ø 2 | 0128300M |
| 6.2 | Sealing washer | 0120500M |
| 7 | Replacement kit for shank fastening | 45444000 |
| 8 | Mousseur | 13952000 |
| 9 | Dirt strainer | 0700200M |
| 10 | Cone nut | 08864000 |
| 11 | Connecting hose | 48018000 |
| 12 | Connecting hose | 48019000 |
| 13 | Compression spring | 00869000 |
| 14 | Non-return valve | 08565000 |
| 15 | Connecting hose | 07300000 |
| 16 | Metal shower hose | 28146000 |
| 17 | Socket spanner | 19332000* |
