Eurodisc Cosmopolitan Single-lever shower mixer 1/2″
Product Number
33569002
EAN
4005176887734
Colour
chromeGROHE Eurodisc Cosmopolitan – sparkling shower tap designed for ease of use
Product main features
- wall mounted
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- shower bottom outlet 1/2"
- integrated non-return valve
- S-unions
- protected against backflow
- optional temperature limiter ref. no. 46 308
- noise classification I in accordance with DIN 4109
Technical Product Information
CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
* Optional accessories

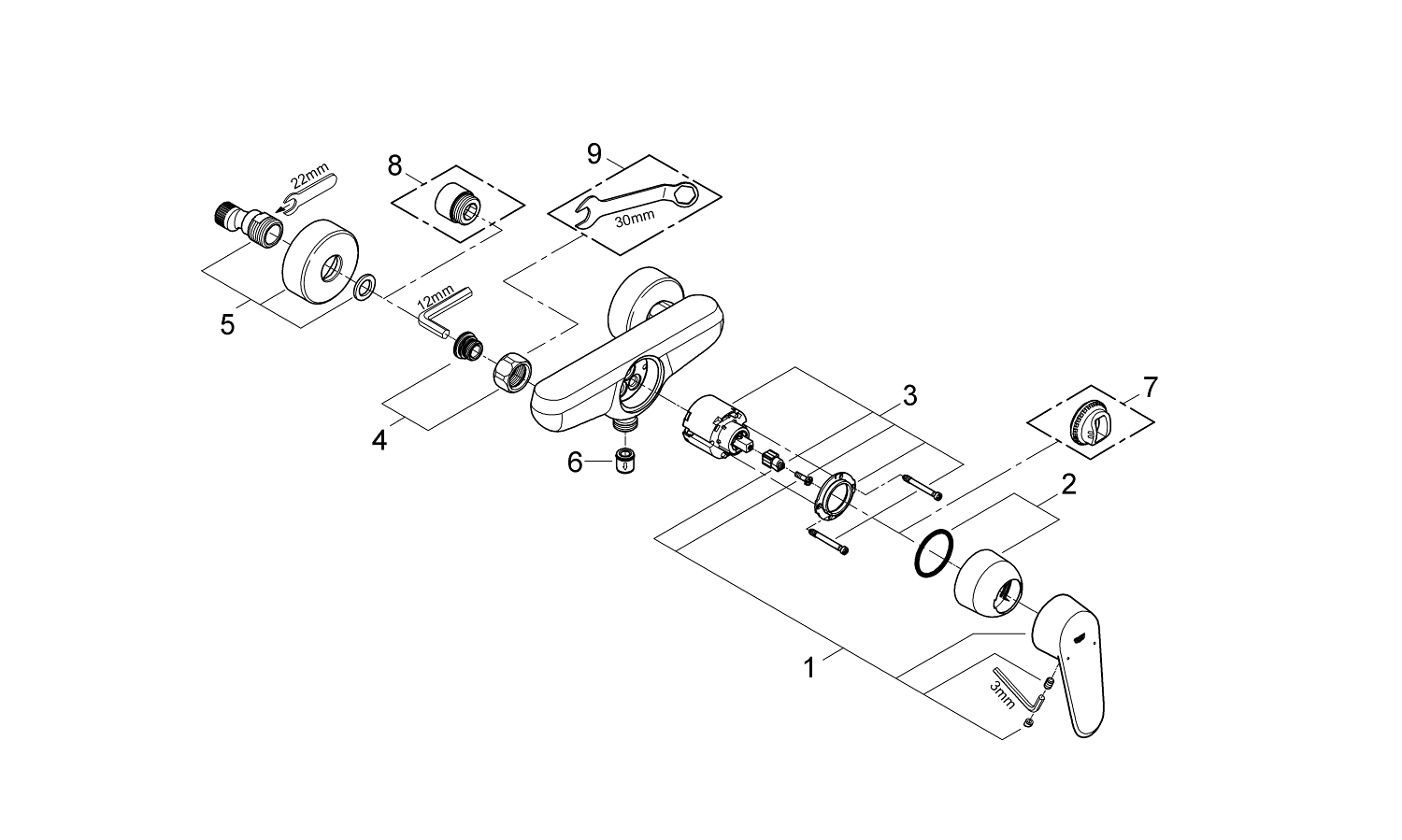

Selected spare parts list (PDF download)
| ||
| 1 | Lever | 46743000 |
| 2 | Cap | 46427000 |
| 3 | Cartridge | 46048000 |
| 4 | Screw connection 1/2" | 45044000 |
| 5 | S-union | 12662000 |
| 6 | Non-return valve | 08565000 |
| 7 | Temperature limiter | 46308000* |
| 8 | Extension 3/4", 20 mm | 0713000M* |
| 9 | Special spanner | 19377000* |
