Eurodisc Cosmopolitan Single-lever bath mixer 1/2″
Product Number
33392002
EAN
4005176889554
Colour
chrome
Product main features
- pillar installation
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- automatic diverter: bath/shower
- mousseur
- integrated non-return valve in the shower outlet 1/2"
- pillar unions
- protected against backflow
- optional temperature limiter ref. no. 46 308
Technical Product Information
CAD Data

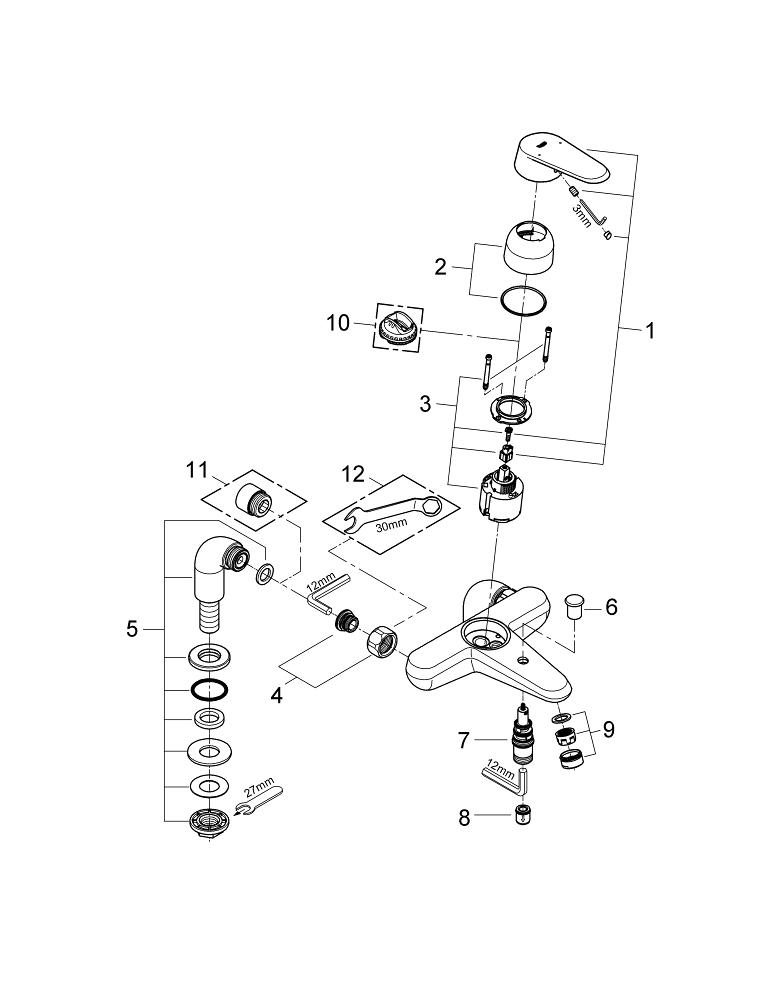

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46743000 |
| 2 | Cap | 46427000 |
| 3 | Cartridge | 46048000 |
| 4 | Screw connection 1/2" | 45044000 |
| 5 | Pillar union | 14012000 |
| 6 | Diverter knob | 64309000 |
| 7 | Diverter | 65655000 |
| 8 | Non-return valve | 08565000 |
| 9 | Mousseur | 13952000 |
| 10 | Temperature limiter | 46308000* |
| 11 | Extension 3/4", 20 mm | 0713000M* |
| 12 | Special spanner | 19377000* |
