BauEdge Single-lever shower mixer 1/2″
Product Number
23560000
EAN
4005176327704
Colour
chrome
Save water without compromising style or performance with the GROHE BauEdge single-lever shower mixer
Product main features
- wall mounted
- metal lever
- GROHE Long-Life 46 mm ceramic cartridge with Eco-Override-Stop
- GROHE Long-Life finish
- adjustable flow rate limiter
- shower bottom outlet 1/2" with integrated non return valve
- S-unions
- metal wall escutcheon
- optional temperature limiter ref. no. 08 791
Technical Product Information
CAD Data

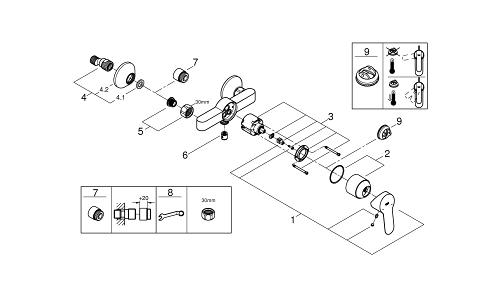

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46698000 |
| 2 | Cap | 46584000 |
| 3 | Cartridge | 46588000 |
| 4 | S-union | 12075000 |
| 4.1 | Seal | 0138600M |
| 4.2 | Escutcheon | 0221000M |
| 5 | Screw connection 1/2" | 45044000 |
| 6 | Non-return valve | 48276000 |
| 7 | Temperature limiter | 08791000 |
| 8 | Special spanner | 19377000* |
| 9 | Extension 3/4", 20 mm | 0713000M* |
