BauEdge Single-lever bath mixer 1/2″
Product Number
23562000
EAN
4005176327728
Colour
chrome
Finish your bathroom in sophisticated style with the GROHE BauEdge single-lever bath mixer with automatic bath/shower diverter and water-saving feature
Product main features
- single hole installation
- metal lever
- GROHE Long-Life 46 mm ceramic cartridge with Eco-Override-Stop
- GROHE Long-Life finish
- adjustable flow rate limiter
- automatic diverter: bath/shower
- spout with mousseur
- shower bottom outlet 1/2" with integrated non return valve
- flexible connection hoses
- optional temperature limiter ref. no. 08 791
- protected against backflow
- Qualitel E1C2A2U3 approval
Technical Product Information
CAD Data

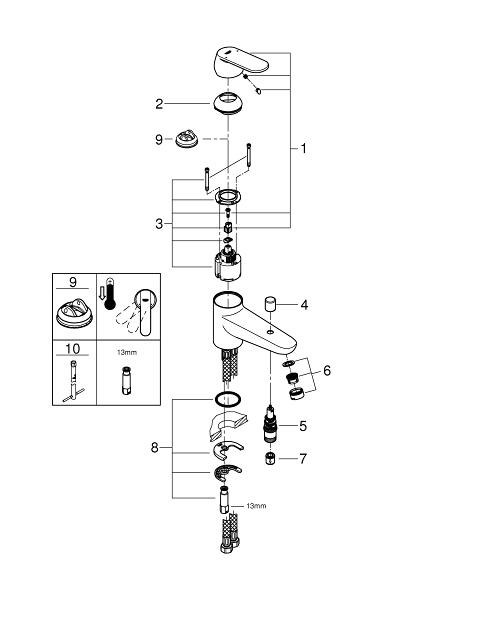

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46685000 |
| 2 | Cap | 46570000 |
| 3 | Cartridge | 46588000 |
| 4 | Diverter knob | 64309000 |
| 5 | Diverter | 65655000 |
| 6 | Mousseur | 13941000 |
| 7 | Non-return valve | 48276000 |
| 8 | Shank mounting kit | 46671000 |
| 9 | Temperature limiter | 08791000 |
| 10 | Mounting wrench | 19017000* |
