Veris Three-hole basin mixer 1/2″ M-Size
Product Number
20182000
EAN
4005176861000
Colour
chrome
Product main features
- ceramic headparts 1/2", 90°
- GROHE Long-Life finish
- pressure-proof flexible connection hoses between spout and side valves
- swivel spout
- stop limiter
- SpeedClean mousseur
- pop-up waste set 1 1/4"
- union nut with 10.5 mm drilling
Technical Product Information
CAD Data

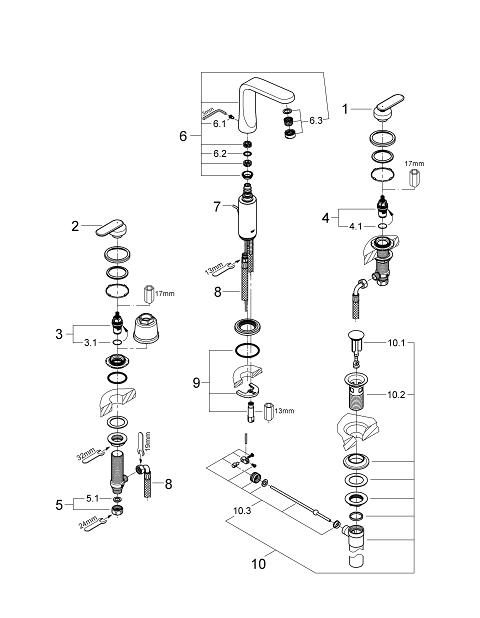

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Handle | 48015000 |
| 2 | Handle | 48016000 |
| 3 | Ceramic headpart 1/2" | 45882000 |
| 3.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 4 | Ceramic headpart 1/2" | 45883000 |
| 4.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 5 | Coupling nut 1/2" x 14.5 mm | 1290200M |
| 5.1 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 6 | Spout | 13248000 |
| 6.1 | Set of screws | 46670000 |
| 6.2 | Sealing washer | 0128500M |
| 6.3 | Laminar flow straightener | 64450000 |
| 7 | Pop-up rod | 10769000 |
| 8 | Flexible hose | 45461000 |
| 9 | Shank mounting kit | 46671000 |
| 10 | Waste fitting | 28957000 |
| 10.1 | Plug | 45324000 |
| 10.2 | Housing | 01153000 |
| 10.3 | Ball rod | 45264000 |
