Uniset 3-in-1 set for WC
Product Number
39452000
EAN
4005176420948
Colour
chrome
Product Description
- with flushing cistern GD 2, 6 - 9 l
- consisting of:
- Uniset element for WC (38 643 001)
- Skate Air flush plate, chrome, vertical installation (38 505 000)
- support feet (37 304 000)
Technical Information
CAD Data

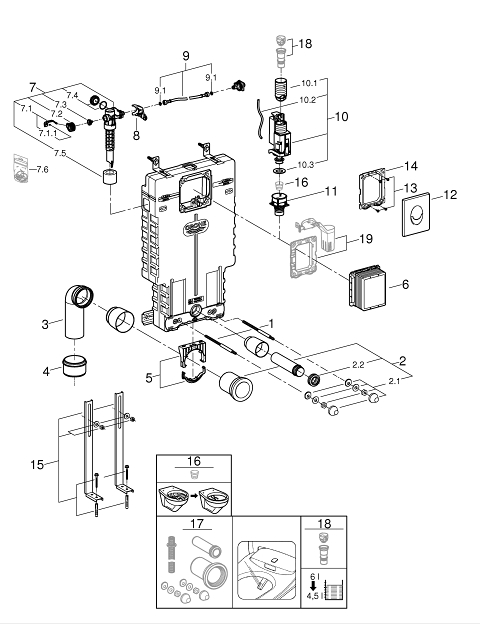

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | Reducer | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft | 66783000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Seal | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Set of seals | 43722000* |
| 8 | Support device | 42246000 |
| 9 | Connecting hose | 42233000 |
| 9.1 | Sealing washer | 0319100M |
| 10 | Dual Flush discharge valve AV1 | 42320000 |
| 10.1 | Extension for overflow pipe | 42313000 |
| 10.2 | Pneumatic hose | 42319000 |
| 10.3 | Seal | 42310000 |
| 11 | Valve seat for GD2 | 42315000 |
| 12 | Flush plate | 38505000 |
| 12.1 | Screw | 6636200M |
| 12.2 | Mounting frame | 43207000 |
| 12.3 | Fixing set | 4308500M* |
| 12.4 | Fixing set | 4215800M* |
| 13 | Support feet | 37304000* |
| 14 | Water Connection | 48561000 |
| 15 | Flow restrictor | 42300000* |
| 16 | Retrofit kit for shower toilets Sensia Arena and IGS | 40899000* |
| 17 | 4.5 l adapter for GD2 | 42333000* |
| 18 | Retrofit set | 38796000* |
