Touch Single-lever shower mixer 1/2″

Product Description

• wall mounted
• metal lever
• GROHE SilkMove 46 mm ceramic cartridge
• GROHE Long-Life finish
• adjustable flow rate limiter
• adjustable minimum flow rate approx. 2.5 l/min
• shower bottom outlet 1/2" with integrated non return valve
• S-unions
• metal wall escutcheons
• optional temperature limiter ref. no. 46 375
• protected against backflow

Technical Information

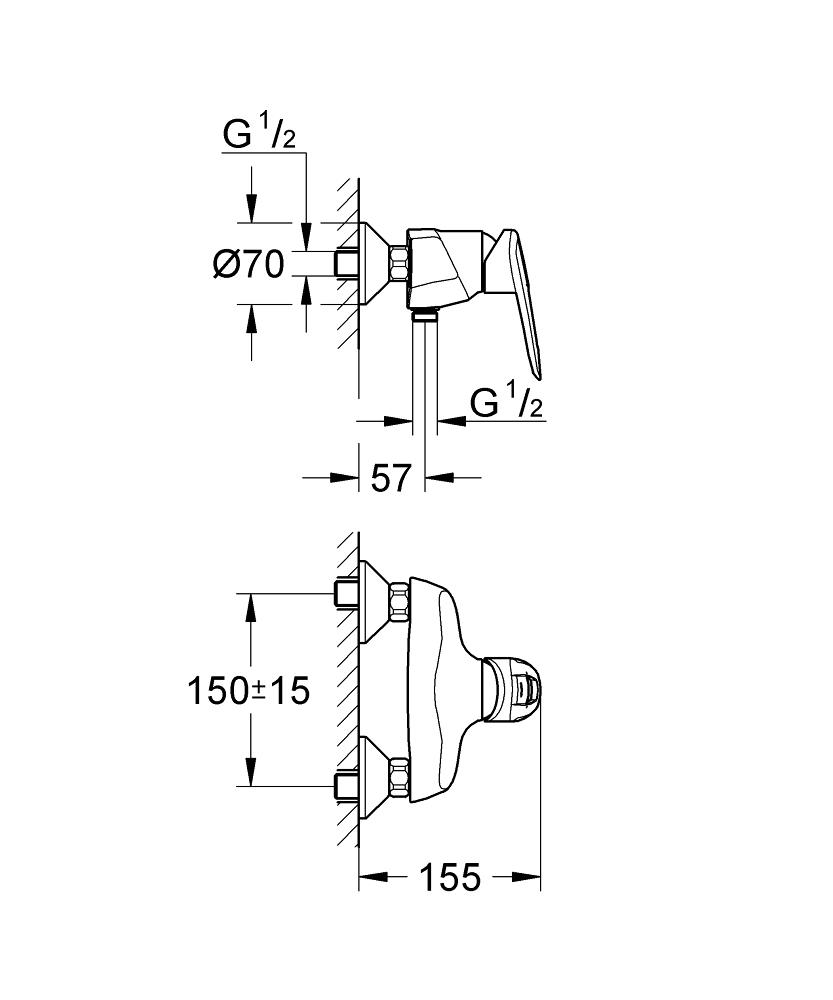

• Dimensional Drawing

CAD Data

• 2D DWG-Data
• 2D DXF-Data
• 3D DXF-Data

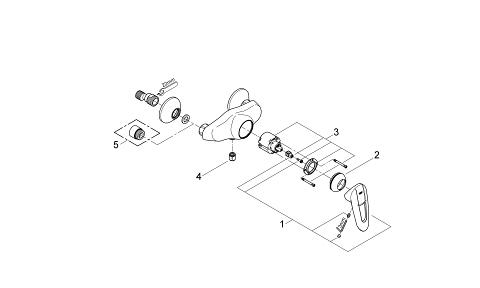

Spare Parts

Pos.-nr.	Prod. description	Order-nr.
* Optional accessories
1	Lever	46603000
2	Cap	46570000
3	Cartridge	46048000
4	Non-return valve	08565000
5	Extension 3/4", 20 mm	0713000M*
