Touch Cosmopolitan Single-lever bath mixer 1/2″

Product Description

• wall mounted
• metal lever
• GROHE SilkMove 46 mm ceramic cartridge
• GROHE Long-Life finish
• adjustable flow rate limiter
• adjustable minimum flow rate approx. 2.5 l/min
• automatic diverter: bath/shower
• mousseur
• shower outlet 1/2" with integrated non-return valve
• S-unions
• protected against backflow
• optional temperature limiter ref. no. 46 308
• noise classification I in accordance with DIN 4109
• replaces 32 262 000

Technical Information

• Dimensional Drawing
• Care Instructions

CAD Data

• 2D DWG-Data
• 2D DXF-Data
• 3D DXF-Data

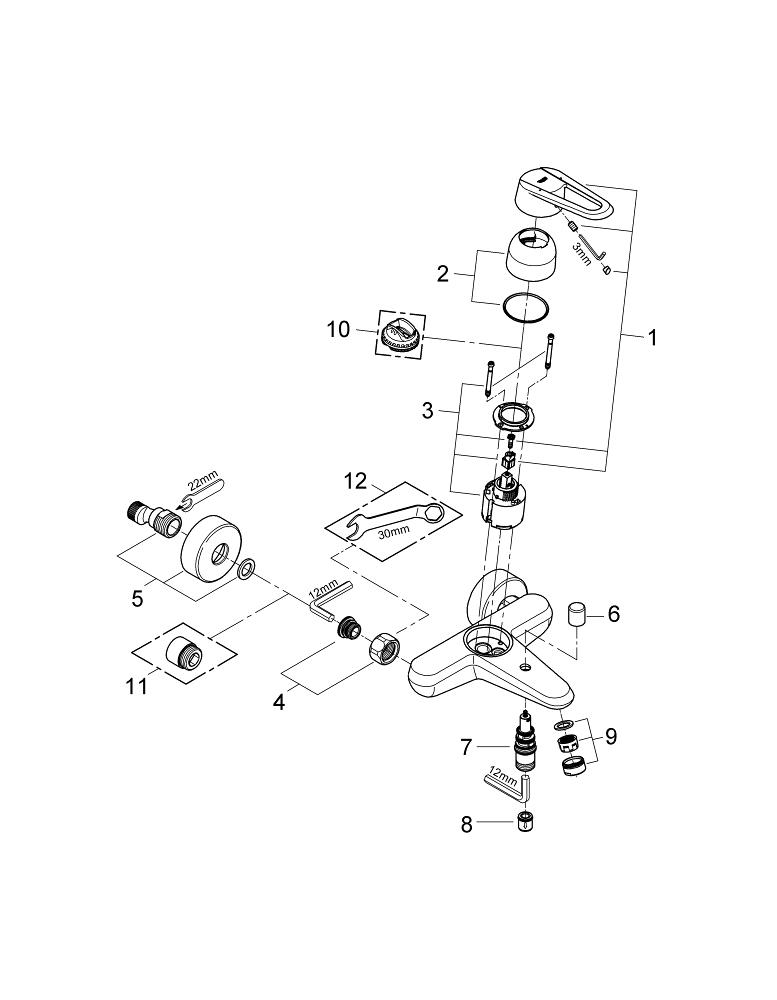

Spare Parts

Pos.-nr.	Prod. description	Order-nr.
* Optional accessories
1	Lever	46800000
2	Cap	46427000
3	Cartridge	46048000
4	Screw connection 1/2"	45044000
5	S-union	12662000
6	Diverter knob	64309000
7	Diverter	65655000
8	Non-return valve	08565000
9	Mousseur	13952000
10	Temperature limiter	46308000*
11	Extension 3/4", 20 mm	0713000M*
12	Special spanner	19377000*
