Tempesta Cosmopolitan System 210 Shower system with thermostat for wall mounting
Product Number
26302001
EAN
4005176408137
Colour
chrome
Product main features
- consisting of:
- horizontal swivable 390 mm shower arm
- exposed thermostat with Aquadimmer function
- allows change between:
- head shower Tempesta 210 (26 408)
- spray pattern: Rain
- with ball joint
- rotation angle ± 15°
- hand shower Tempesta Cosmopolitan 100 (27 571)
- 2 spray patterns:
- Rain, Jet
- adjustable in height with gliding element
- shower hose Relexaflex 1500 mm (28 161)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- SpeedClean anti-limescale system
- Inner WaterGuide for a longer life
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 7 l/min
- optional upgrade: GROHE EasyReach tray (26 362), sold separately
Technical Product Information

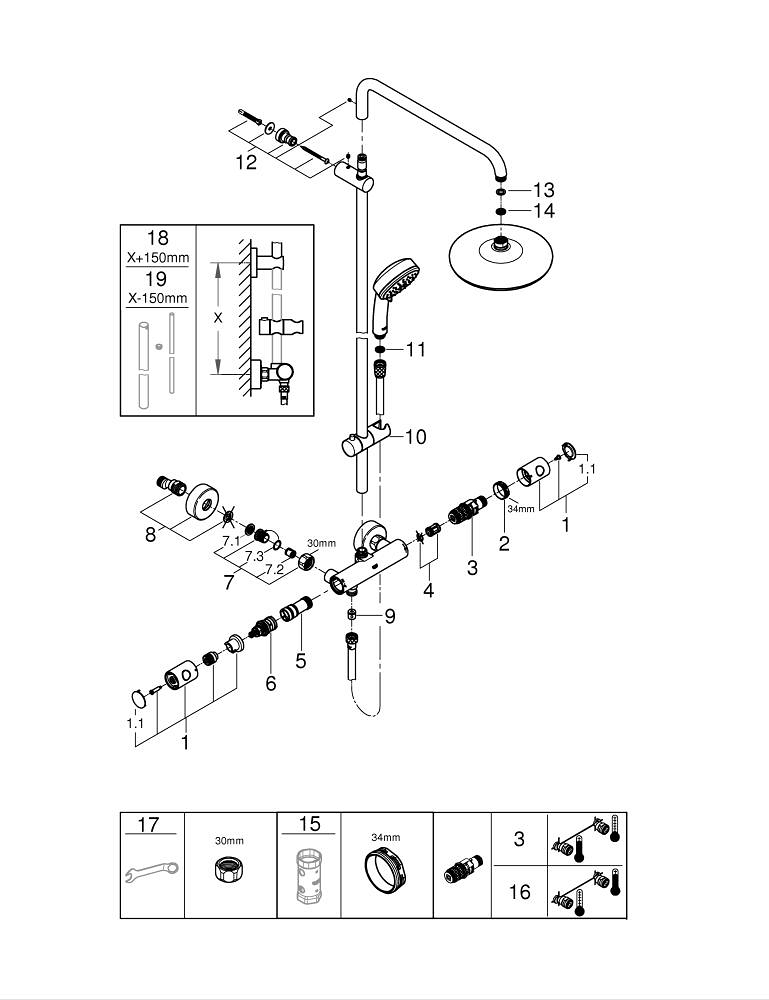

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Metal handle 1/2" | 47984000 |
| 1.1 | Cover cap | 6458500M |
| 2 | Fitting ring | 47743000 |
| 3 | Thermostatic compact cartridge 1/2" | 47439000 |
| 4 | Buffer | 47398000 |
| 5 | Water flow | 47751000 |
| 6 | Aquadimmer | 12433000 |
| 7 | Non-return valve | 47189000 |
| 7.1 | Dirt strainer | 0726400M |
| 7.2 | Non-return valve | 08565000 |
| 7.3 | O-ring ø 17 x ø 2 | 0305500M |
| 8 | S-union | 12662000 |
| 9 | Non-return valve | 08565000 |
| 10 | Glide element | 12140000 |
| 11 | Dirt strainer | 0700200M |
| 12 | Shower rail holder | 48423000 |
| 13 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 14 | Dirt strainer | 48007000 |
| 15 | Socket spanner | 19332000* |
| 16 | GROHE TurboStat cartridge 1/2" | 47175000* |
| 17 | Special spanner | 19377000* |
| 18 | Shower system pipe for retrofitting | 48053000* |
| 19 | Shower system pipe for retrofitting | 48054000* |
