Tectron Rondo Infra-red electronic for urinal
Product Number
37421000
EAN
4005176935572
Colour
chrome
Product Description
- with infrared sensor for bi-directional communication for monitoring, configuration and servicing
- 6 V lithium battery, type CR-P2
- battery lifetime: approx. 7 years (150 actuations a day)
- GROHE Long-Life finish
- metal housing
- exposed installation
- flow pressure min 0.5 bar
- operating pressure max 10 bar
- G ½
- with integrated stop valve
- flush pipe with rubber connector
- multistage battery status display
- 7 pre-set programs:
- auto flush
- cleaning mode
- pre-flush on/off
- additional functions and precise settings by remote control 36 407
- adjustable flow time by hand or remote
- CE approved
Technical Information
CAD Data

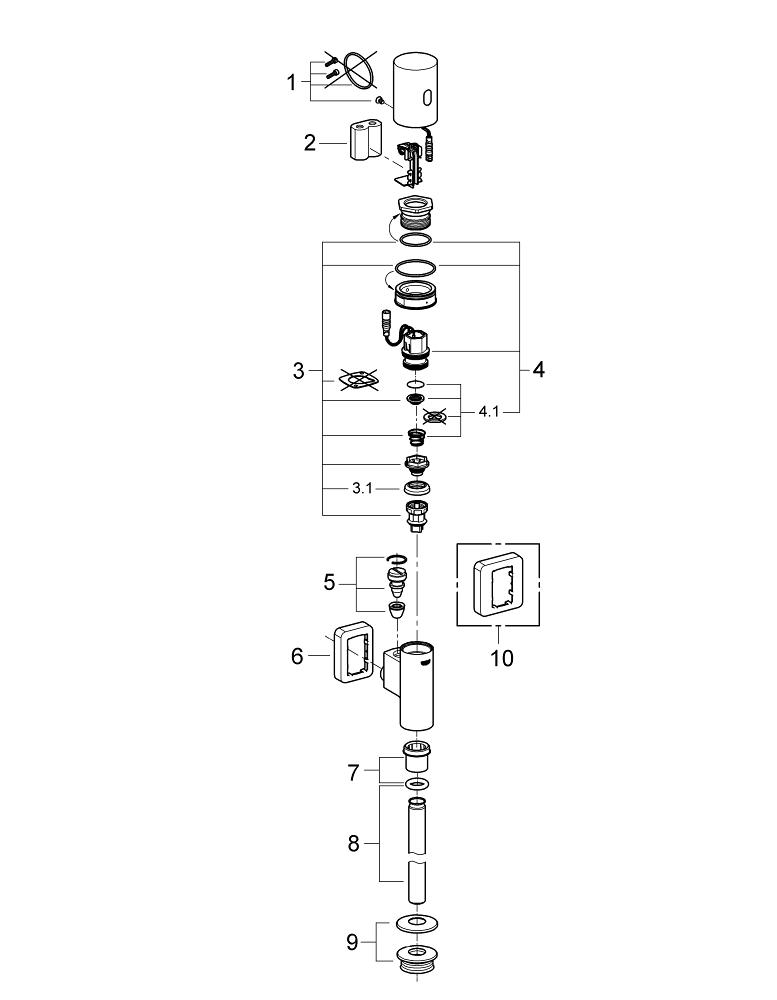

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Set of screws | 42422000 |
| 2 | Battery | 42886000 |
| 3 | Piston | 42797000 |
| 3.1 | Sleeve | 4376500M |
| 4 | Solenoid valve | 42438000 |
| 4.1 | Transformer for mirror | 43581000 |
| 5 | Supply stop | 43393000 |
| 6 | Escutcheon | 66734000 |
| 7 | Nut | 42344000 |
| 8 | Urinal flush pipe | 37035000 |
| 9 | Adapter for urinal | 43818000 |
| 10 | Escutcheon | 37391000* |
