Start Single-lever bath mixer 1/2″
Product Number
23413000
EAN
4005176983344
Colour
chrome
Product main features
- wall mounted
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- GROHE Long-Life finish
- automatic diverter: bath/shower
- shower outlet 1/2" with integrated non-return valve
- mousseur
- S-unions
- metal wall escutcheons
- optional temperature limiter ref. no. 46 308
- with shower set
- consisting of:
- hand shower Vitalio Start 100 1 spray (27 940)
- wall shower holder (28 605)
- shower hose Relexaflex 1500 mm 1/2" x 1/2" (28 151)
- protected against backflow
Technical Product Information
CAD Data

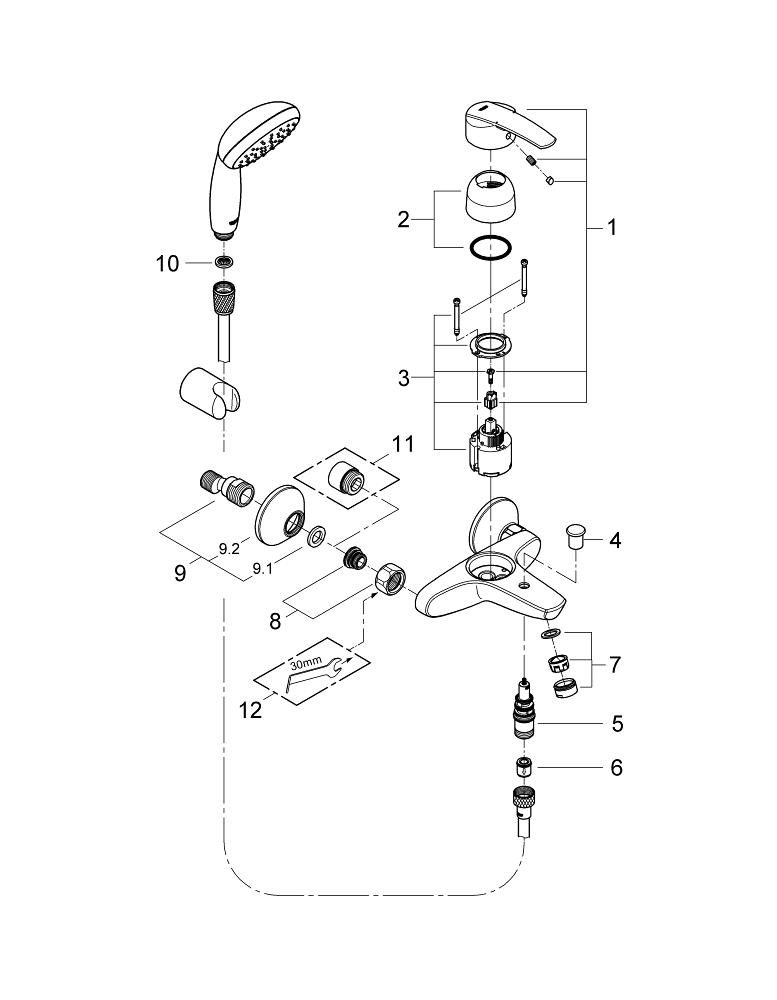

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46606000 |
| 2 | Cap | 46427000 |
| 3 | Cartridge | 46048000 |
| 4 | Diverter knob | 65648000 |
| 5 | Diverter | 65655000 |
| 6 | Non-return valve | 08565000 |
| 7 | Mousseur | 13952000 |
| 8 | Screw connection 1/2" | 45044000 |
| 9 | S-union | 12075000 |
| 9.1 | Seal | 0138600M |
| 9.2 | Escutcheon | 0221000M |
| 10 | Dirt strainer | 0700200M |
| 11 | Extension 3/4", 20 mm | 0713000M* |
| 12 | Special spanner | 19377000* |
