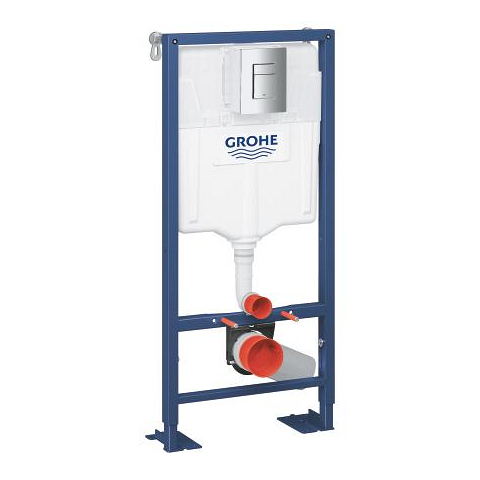

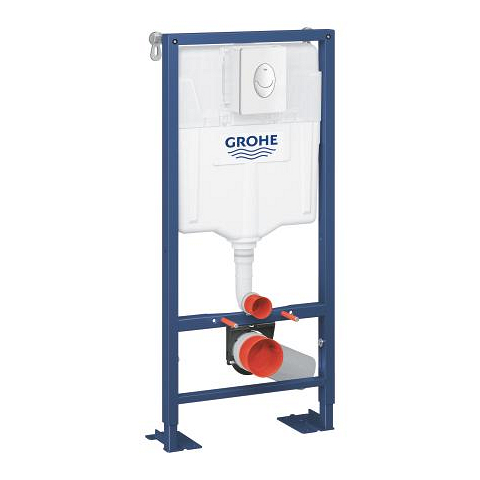

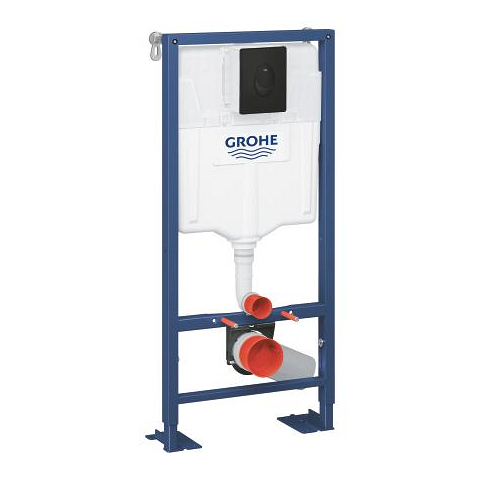

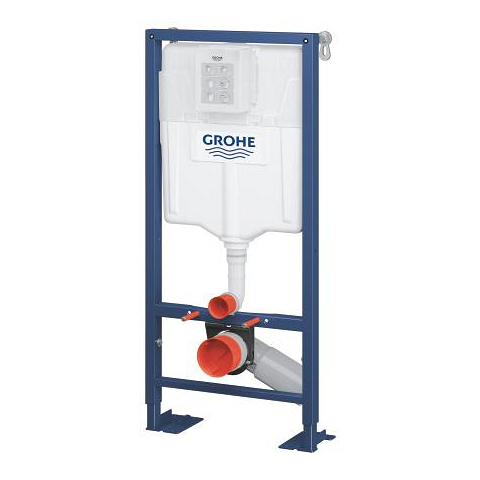

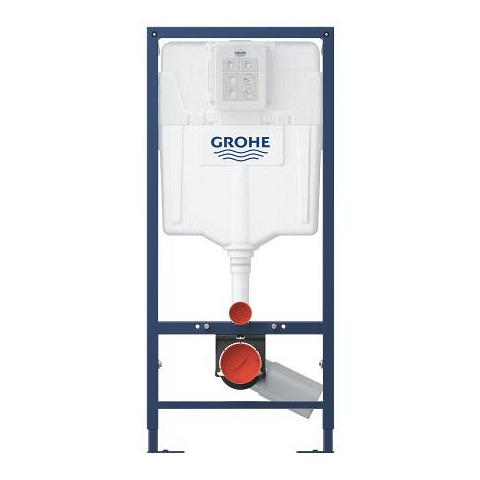

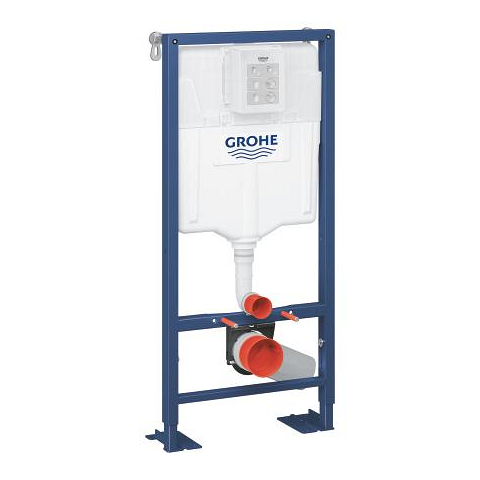

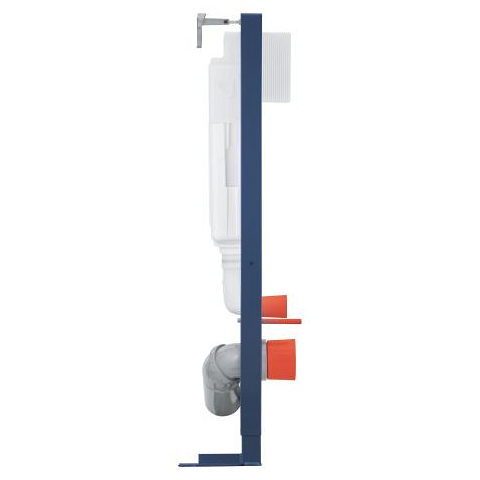

Solido Element for WC, 1.13 m installation height
GROHE Solido installation system for Sensea WCs – super solid, sustainable and silent
Made in Germany and equipped with a high-load pedestal, the 1.13 m powder coated steel frame of this GROHE Solido element offers a certified load-bearing capacity for up to 400 kg. The flexible installation is swift and easy, allowing you to mount it free-standing, in front of a solid wall or inside a stud wall.* Flush plate, inspection shaft and connection hose are quick to install, requiring no tools. The package includes a Solido frame with a GD2 cistern (4.5 l - 6 l), wall brackets for on-the-wall installation and a 90° rotatable PVC outlet bend (diameter: 100 mm). This smooth and sturdy pipe offers a tool-free adjustment for your individual installation situation. Cleaning your bathroom takes only seconds with a wall-hung toilet and the toilet cistern concealed in the wall. The GROHE Whisper technology minimises noise transmission to the adjoining rooms. With the GROHE Water Saving dual flush, your water consumption will be reduced by up to 50% (factory set: 3 l & 4.5 l). Combined with the Sensea wall-hung WCs and the GROHE flush plates in standard size (1092920000, 1092932430 & 109293SH00) this system will make a great addition to any bathroom and comes with a 5-year guarantee. Please note: for small flush plates order revision shaft 40911000, sold separately. * suitable for installation of 70 cm toilets
Product main features
- with flushing cistern GD 2, 4.5 - 6 l
- for free-standing installation, for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- suitable for installation of 70 cm toilets
- with fixed connections
- lockable
- fixing material
- 2 WC fixing bolts
- fixing device for ceramic
- distance of fixing bolts 180/230 mm
- 90° rotatable PVC outlet bend 100 mm
- depth adjustable
- inlet and outlet connecting set
- flushing cistern GD 2, 4.5 - 6 l, containing following features:
- adjustment ex factory 3 l and 4.5 l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- ½" water supply connection including integrated angle valve and push fit flexible hose union
- no tools required for the installation of the inspection shaft including protection during construction phase
- for vertical or horizontal use
- including wall brackets 38 558 00M for on-the-wall installation
- for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
- for easy flow regulation via inspection shaft without removing the valves please order flow manager 42 593 000 (sold separately)
