Solido 3-in-1 set for WC, 1.13 m installation height
Product Number
38956000
EAN
4005176913969
Colour
chromeProduct main features
- flushing cistern GD 2, 6 - 9 l
- consisting of:
- Rapid SL element for WC (38 528 001)
- Skate Air flush plate, chrome, vertical installation (38 505 000)
- 2 wall brackets with fixing material
Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Technical Product Information
- Dimensional Drawing
- Care Instructions
CAD Data

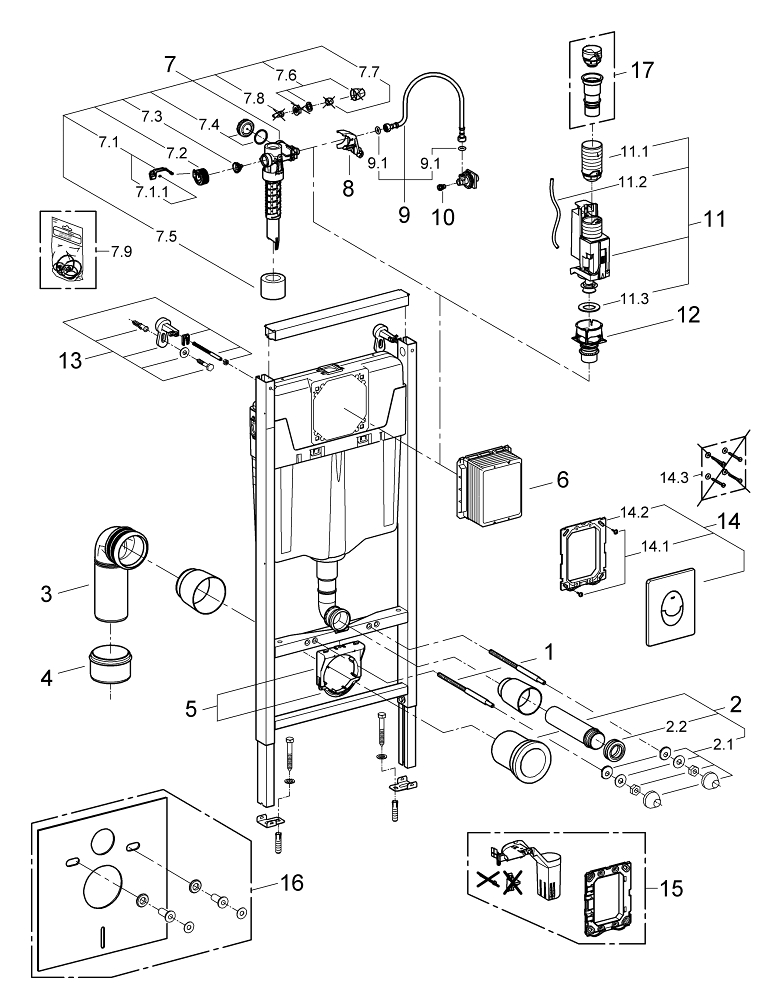

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
* Optional accessories
Selected spare parts list (PDF download)
| ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | Reducer | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft | 66791000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Seal | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Set of seals | 43722000* |
| 8 | Support device | 42246000 |
| 9 | Connecting hose | 42233000 |
| 9.1 | Sealing washer | 0319100M |
| 10 | Headpart | 42385000 |
| 11 | Dual Flush discharge valve AV1 | 42320000 |
| 11.1 | Extension for overflow pipe | 42313000 |
| 11.2 | Pneumatic hose | 42319000 |
| 11.3 | Seal | 42310000 |
| 12 | Valve seat for GD2 | 42315000 |
| 13 | Wall brackets | 3855800M |
| 14 | Flush plate | 38505000 |
| 14.1 | Screw | 6636200M |
| 14.2 | Mounting frame | 43207000 |
| 14.3 | Fixing set | 4308500M* |
| 14.4 | Fixing set | 4215800M* |
| 15 | Retrofit set | 38796000* |
| 16 | Set for noise protection | 37131000* |
| 17 | 4.5 l adapter for GD2 | 42333000* |
