Rondo Flush valve for urinal
Product Number
37411000
EAN
4005176918827
Colour
chrome
Product main features
- 1/2"
- with control cap and flush pipe connection
- flow pressure min 0.5 bar
- operating pressure max 5 bar
- integrated stop valve
- flow rate adjustment
- flush volume adjustable 2.0 - 6.0 l
- material: brass
- with wall escutcheon
- flush pipe Ø 15 x 300 mm
- rubber connector with escutcheon
- GROHE Long-Life finish
Technical Product Information

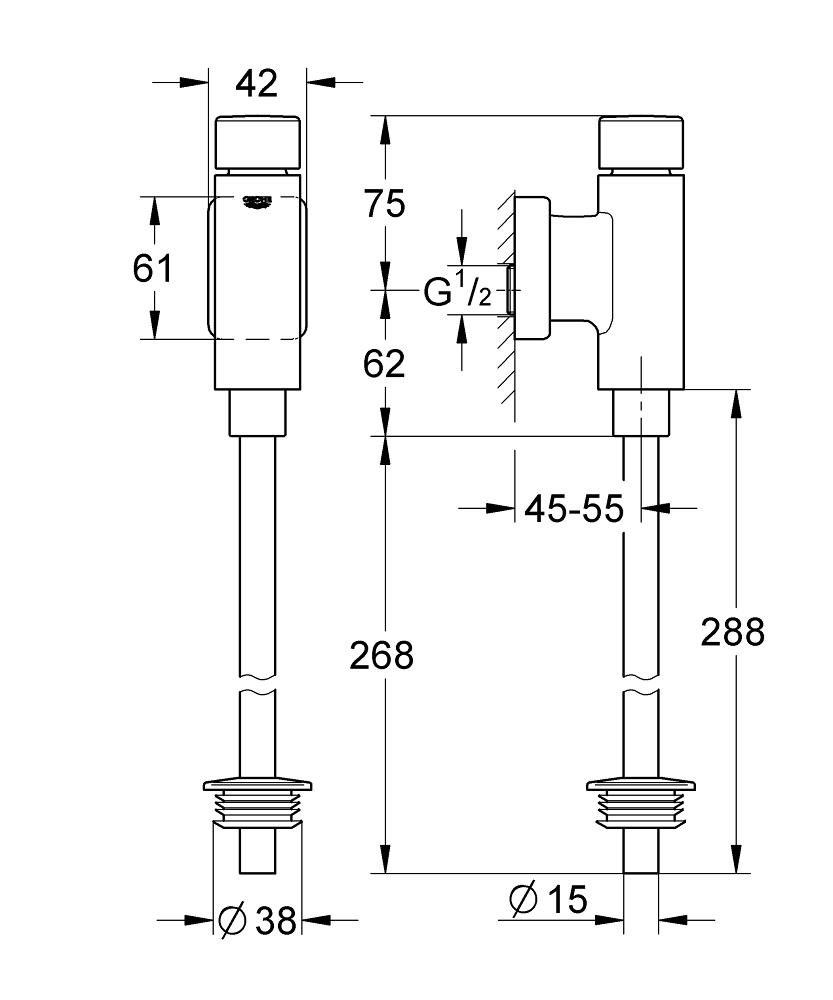

CAD Data

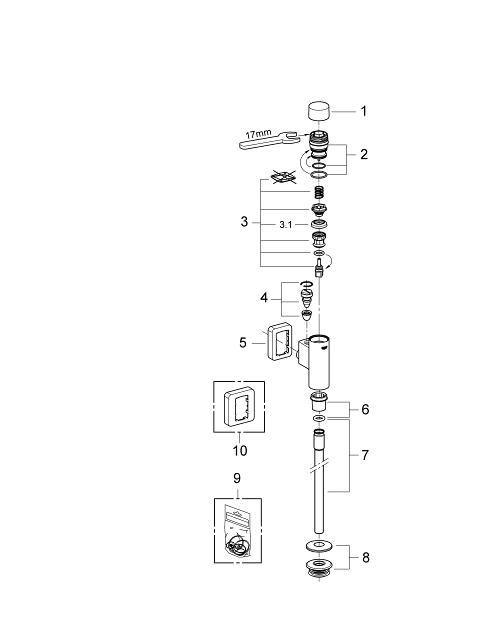

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Press button | 66728000 |
| 2 | Actuation unit | 66802000 |
| 3 | Piston | 43450000 |
| 3.1 | Sleeve | 4376500M |
| 4 | Supply stop | 43393000 |
| 5 | Escutcheon | 66734000 |
| 6 | Nut | 42344000 |
| 7 | Flush pipe | 42435000 |
| 8 | Adapter for urinal | 43818000 |
| 9 | Set of seals | 42345000* |
| 10 | Escutcheon | 37391000* |
