Retrofit System 260 Shower system with diverter for wall mounting
Product Number
27867001
EAN
4005176417931
Colour
chrome
Product main features
- consisting of:
- horizontal swivable 450 mm shower arm
- built-in diverter with single or duo function and optional eco setting
- allows change between:
- head shower Euphoria 260 (26 457)
- spray patterns: Rain, SmartRain, Jet
- with ball joint
- rotation angle ± 15°
- hand shower Euphoria Mono (27 493)
- spray pattern: Rain
- adjustable in height with gliding element
- distance between diverter and upper bracket: 653 mm
- Rotaflex Metal Long-Life TwistStop shower hose 1500 mm (28 417)
- angle adapter to prevent hose interfering with shower valve
- GROHE EcoJoy 9.5 l/min flow limiter
- GROHE DreamSpray perfect spray pattern
- GROHE LongLife finish
- GROHE SpeedClean effortless limescale removal
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- min. recommended pressure 1.0 bar
- system includes 2 back flow preventers
- optional compensation disc (26 030) available for uneven wall installation
- optional height extension (26 464) available for raising the shower head
Technical Product Information
CAD Data

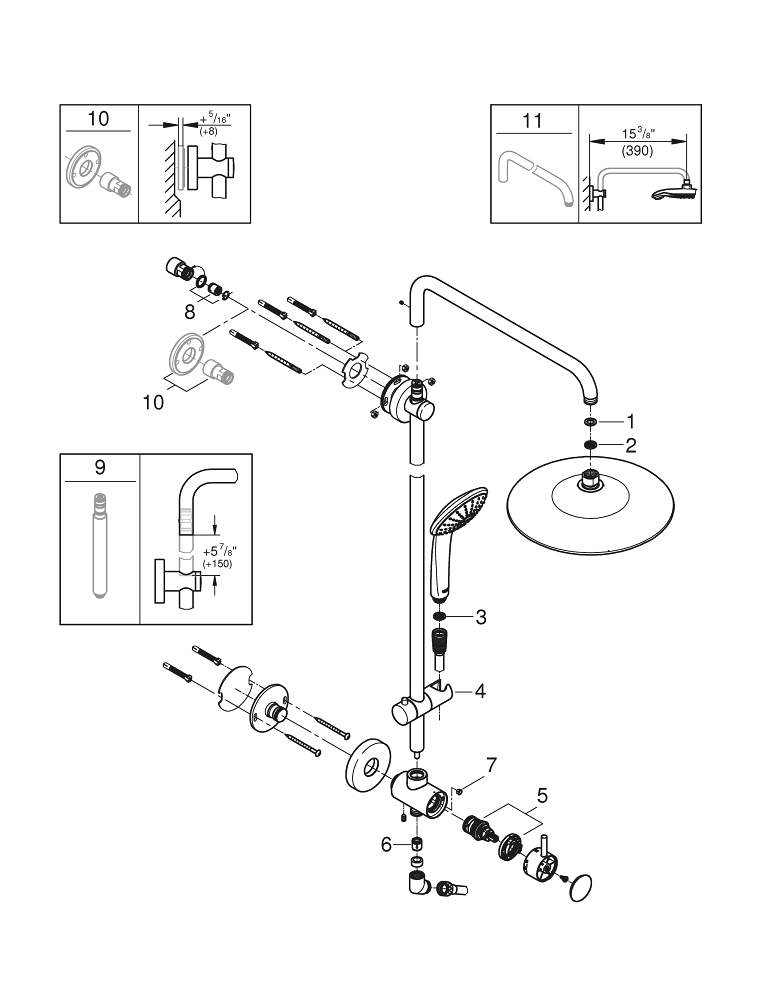

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 2 | Dirt strainer | 48007000 |
| 3 | Dirt strainer | 0700200M |
| 4 | Glide element | 12140000 |
| 5 | Diverter | 48058000 |
| 6 | Non-return valve | 08565000 |
| 7 | Flow limiter | 48160000 |
| 8 | non-return valves | 48183000 |
| 9 | Retrofit 6” height extension | 26464000* |
| 10 | Compensation disc | 26030000* |
| 11 | Shower arm for shower systems | 14047000* |
