Retrofit System Shower system with diverter for wall mounting
Product Number
26487000
EAN
4005176425165
Colour
chrome
Product Description
- consisting of:
- horizontal swivable shower arm 45°
- built-in diverter allows change between:
- 6 diverter functions (2 discrete functions (non shared) + one shared function in both standard and Eco flow)
- head shower and hand shower (not included)
- gliding element
- distance between diverter and upper bracket: 653 mm
- Rotaflex Metal Long-Life TwistStop shower hose 1500 mm (28 417)
- angle adapter to prevent hose interfering with shower valve
- optional GROHE Water Saving 6.6 l/min flow limiter included
- GROHE Long-Life finish
- Inner WaterGuide for a longer life
- TwistStop to prevent hose from twisting
- suitable for instantaneous heaters from 18 kW/h
- min. recommended pressure 1.0 bar
- system includes 2 back flow preventers
- optional compensation disc (26 030) available for uneven wall installation
- optional height extension (26 464) available for raising the shower head
- CALGreen compliant
Technical Information
CAD Data

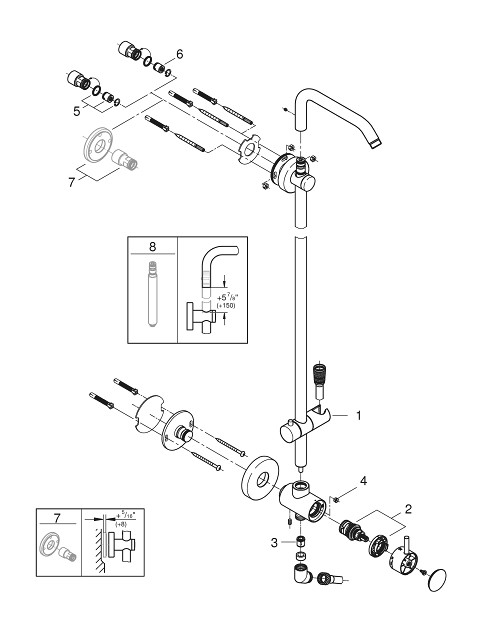

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Glide element | 12140000 |
| 2 | Diverter | 48058000 |
| 4 | Flow limiter | 48160000 |
| 5 | Non-return valve | 48184000 |
| 6 | Non-return valve | 08565000 |
| 7 | Compensation disc | 26030000* |
| 8 | Retrofit 6” height extension | 26464000* |
