5-in-1 set for WC, 1.13 m installation height
Product Number
39000000
EAN
4005176933912
Colour
chrome
Product Description
- with flushing cistern GD 2, 6 - 9 l
- 1.13 m installation height
- for on-the-wall installations or studded walls
- for dry-cladding, completely pre-assembled
- powder coated steel frame, self-supporting
- with fixed connections
- quick adjustment, lockable
- fixing material
- TÜV approved
- 2 WC fixing bolts
- fixing device for ceramic
- WC ceramics with small bearing area (less than 205 mm) require additional accessory 38 779 000
- distance of fixing bolts 180/230 mm
- outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l
- adjustment ex factory 6 l and 3 l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right or back
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- ½" water supply connection including integrated angle valve and push fit flexible hose union
- no tools required for the installation of the inspection shaft including protection during construction phase
- for vertical or horizontal use
- accessories for on-the-wall installation
- toilet brush set, wall mounted
- with GROHE Fresh retrofit set
- for chlorine-free tabs only
- including flush plate Skate Cosmopolitan
- vertical and horizontal installation
- 156 x 197 mm
- chrome
- made of ABS
- GROHE Long-Life Shine durable sparkling sheen
- including WC set for noise protection (37 131 000)
Technical Information
CAD Data

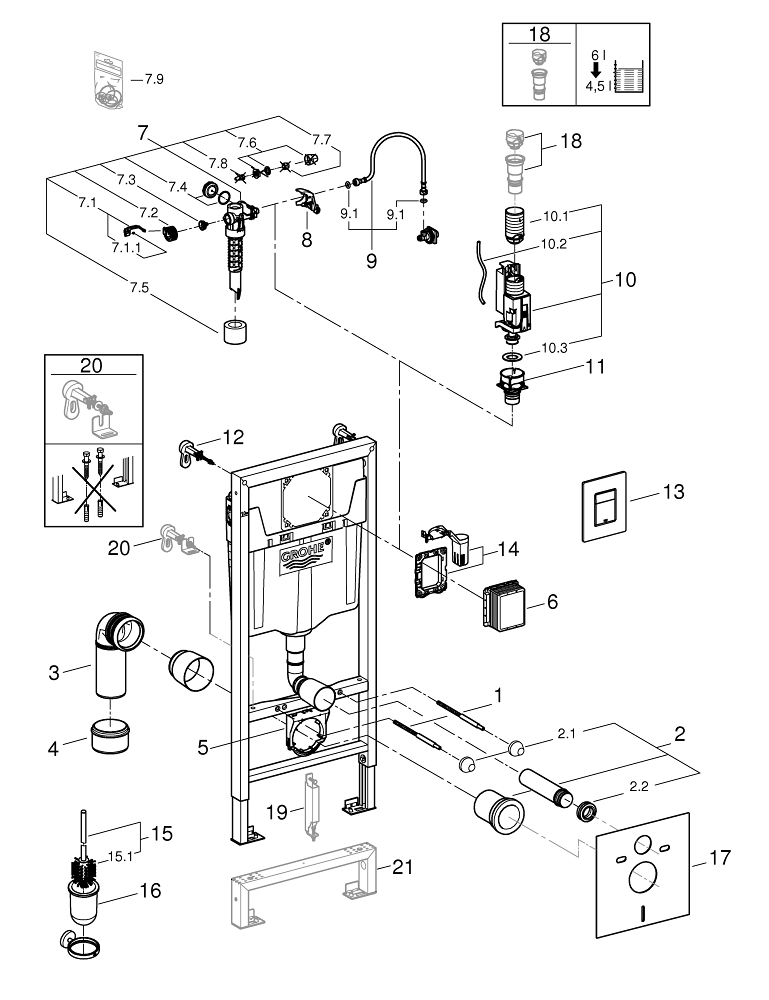

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | Reducer | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft | 66791000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Seal | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Set of seals | 43722000* |
| 8 | Support device | 42246000 |
| 9 | Connecting hose | 42233000 |
| 9.1 | Sealing washer | 0319100M |
| 10 | Dual Flush discharge valve AV1 | 42320000 |
| 10.1 | Extension for overflow pipe | 42313000 |
| 10.2 | Pneumatic hose | 42319000 |
| 10.3 | Seal | 42310000 |
| 11 | Valve seat for GD2 | 42315000 |
| 12 | Wall brackets | 3855800M |
| 13 | Top plate with push button | 42371000 |
| 14 | Retrofit set | 38796000* |
| 15 | Spare brush | 40392000 |
| 15.1 | Spare brush head | 40791001 |
| 16 | Spare glass | 40393000 |
| 17 | Set for noise protection | 37131000* |
| 18 | 4.5 l adapter for GD2 | 42333000* |
| 19 | Accessory | 38779000* |
| 20 | Xtra wall brackets, flexible placing | 38733000* |
| 21 | Extension | 38629000* |
