Nova Cosmopolitan Light Flush plate
Product Number
38809000
EAN
4005176864681
Colour
chrome
Product Description
- for dual flush or start & stop actuation
- external highlighted outline
- with LEDs in blue, red, yellow, green
- light colour individually adjustable
- on/off button
- timer for individual regulation of illuminating period
- 3 m connecting cable
- transformer for external installation
- operating voltage 230 V AC
- 50/60 Hz, 2.0 VA
- this product contains built-in LED lamps, which cannot be changed: energy efficiency class: A+
- CE approved
- for pneumatic discharge valve AV1
- vertical and horizontal installation
- 156 x 197 mm
- made of ABS
- GROHE Long-Life finish
- GROHE Water Saving - Less water, perfect flow
- for combination with Rapid SL and Uniset with GD 2 cistern
- for use with Rapid SLX please order shaft 66 791 000 (sold separately)
Technical Information
CAD Data

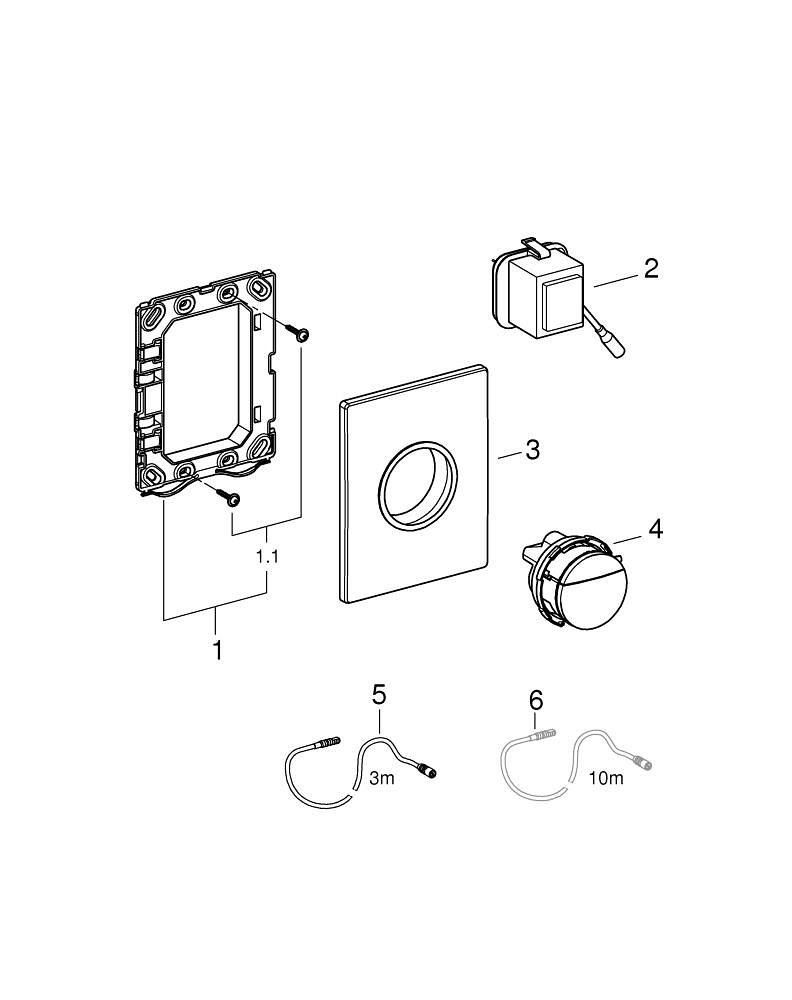

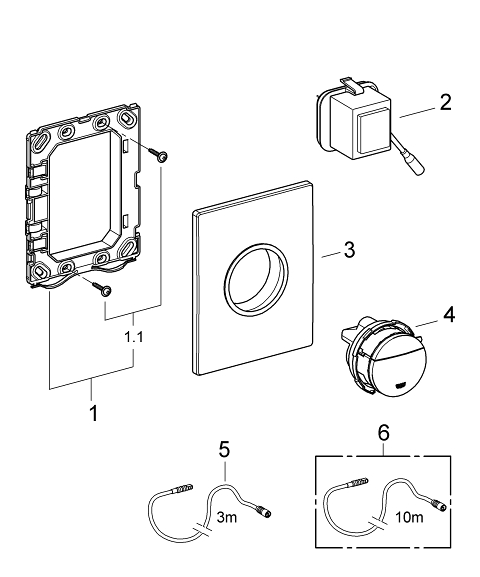

Spare Parts
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Mounting frame | 42358000 |
| 1.1 | Screw | 6636200M |
| 2 | Switching power supply | 66960000 |
| 3 | Top plate with electronic | 42359000 |
| 4 | Pressure disc | 66997000 |
| 5 | Extension cable | 36221000 |
| 6 | Extension cable | 36222000* |
