Minta Touch Electronic single-lever sink mixer 1/2″
Product Number
30218001
EAN
4005176343209
Colour
chrome
Product main features
- L-spout
- Touch: activation of water via skin contact
- battery supply 6 V lithium-battery, type CR-P2
- CE approved
- solenoid valve
- fixed value mixing valve
- automatic safety stop after 60 sec. (factory set)
- type of protection IP 44
- GROHE Long-Life finish
- GROHE SilkMove 46 mm ceramic cartridge
- pull-out mousseur
- adjustable flow rate limiter
- swivel tubular spout
- swivel area 360°
- protected against backflow
- rapid installation system
- flexible connection hoses
Technical Product Information
CAD Data

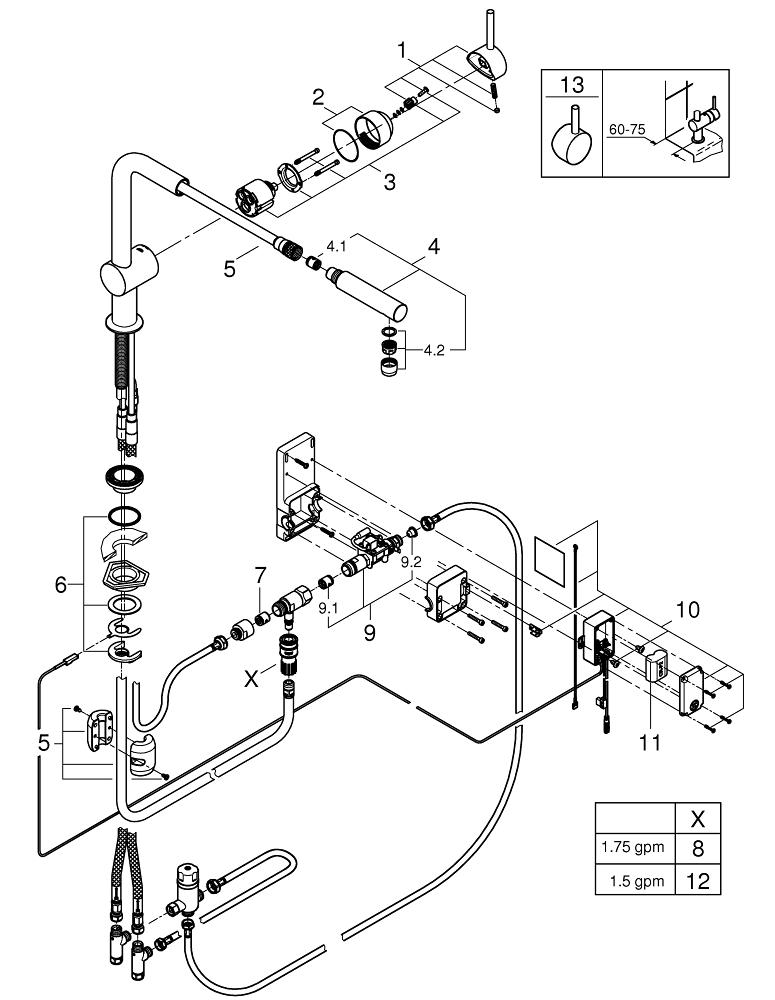

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46015000 |
| 2 | Cap | 46025000 |
| 3 | Cartridge | 46048000 |
| 4 | Pull out spray | 46858000 |
| 4.1 | Non-return valve | 08565000 |
| 4.2 | Mousseur | 13967000 |
| 5 | Hose for sink mixer with pull-out dual spray or mousseur | 48293000 |
| 6 | Shank mounting kit | 46345000 |
| 7 | Non-return valve | 08565000 |
| 8 | Snap coupling | 48220000 |
| 9 | Solenoid valve | 48213000 |
| 9.1 | Non-return valve | 08565000 |
| 9.2 | Dirt strainer | 42395000 |
| 10 | Control unit | 48214000 |
| 11 | Battery | 42886000 |
| 12 | Quick coupling | 64999000* |
