Lineare Single-lever mixer with 2-way diverter
Product Number
24064DC1
EAN
4005176465734
Colour
supersteel
GROHE Lineare single-lever mixer trim set in SuperSteel – sure handling to switch with ease between 2 shower or bath functions
Product main features
- set for final installation for
- GROHE Rapido SmartBox (35 600/35 604)
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE FastFixation escutcheon with covered shaft sealing and covered fixing
- metal escutcheon, retroactively 6° adjustable
- metal lever
- automatic 2-way diverter
- flow performance: outlet B = 27 l/min, outlet C = 27 l/min
- without roughing-in set
Technical Product Information
CAD Data

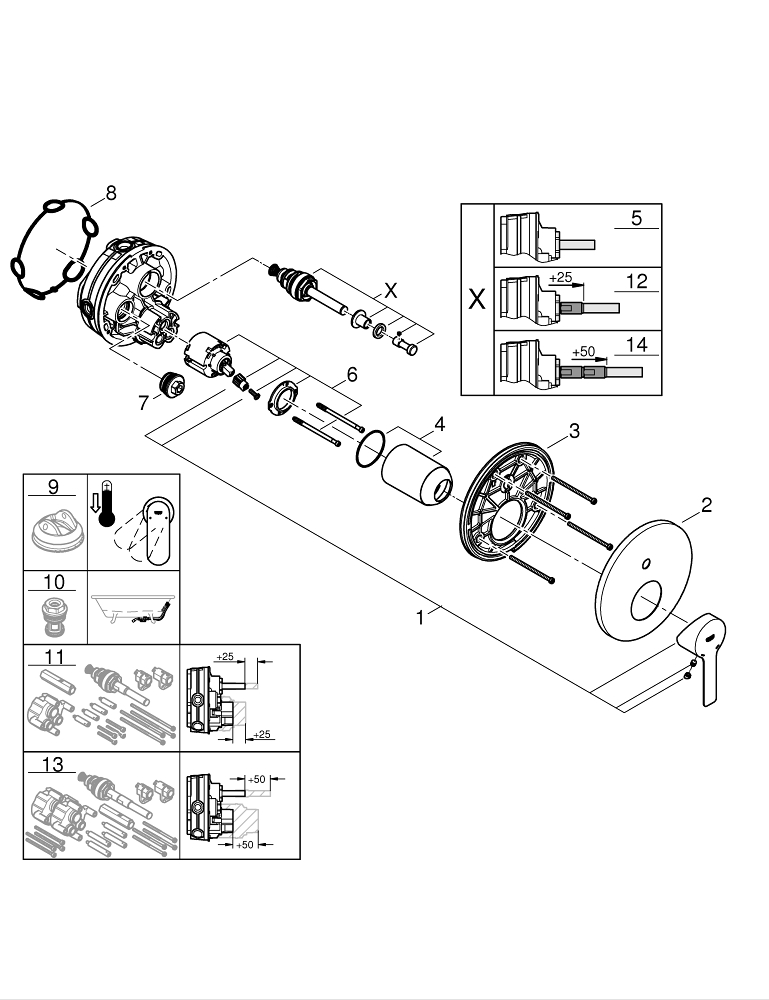

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Lever | 46988DC0 |
2 | Escutcheon | 48429DC0 |
3 | Mounting plate | 48440000 |
4 | Cap | 09038DC0 |
5 | Diverter | 48442DC0 |
6 | Cartridge | 46048000 |
7 | Non-return valve | 49085000 |
8 | Seal | 48360000 |
9 | Temperature limiter | 46375000* |
10 | Backflow protection combination (EN1717) | 14055000* |
11 | Universal extension set single-lever mixers, 25 mm | 14056000* |
12 | Diverter | 48444DC0* |
13 | Universal extension set single-lever mixers, 50 mm | 14057000* |
14 | Diverter | 48445DC0* |
