Zedra Ladylux3 Café Touch Electronic single-lever sink mixer 1/2″
Product Number
30205DC0
EAN
4005176926068
Colour
supersteel
Product main features
- single hole installation
- Touch: activation of cold water via skin contact
- battery supply 6 V lithium-battery, type CR-P2
- CE approved
- indication of battery status through different pulses of water
- safety shut down circuit (when battery nearly empty)
- solenoid valve
- automatic safety stop after 60 sec. (factory set)
- type of protection IP 44
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE SuperSteel Infinity Finish
- SpeedClean anti-limescale system
- swivel tubular spout
- swivel area 360°
- adjustable flow rate limiter
- pull-out locking dual spray control - switches back and forth between regular flow and spray
- automatic returning
- integrated non-return valve
- diverter: mousseur/SpeedClean shower jet
- automatic return to mousseur
- flexible connection hoses
- rapid installation system from the top
- protected against backflow
- optional:
- upgrade for Touch function with mixed water:
- Grohtherm Micro 34 507 000 incl. connection set
Technical Product Information
CAD Data

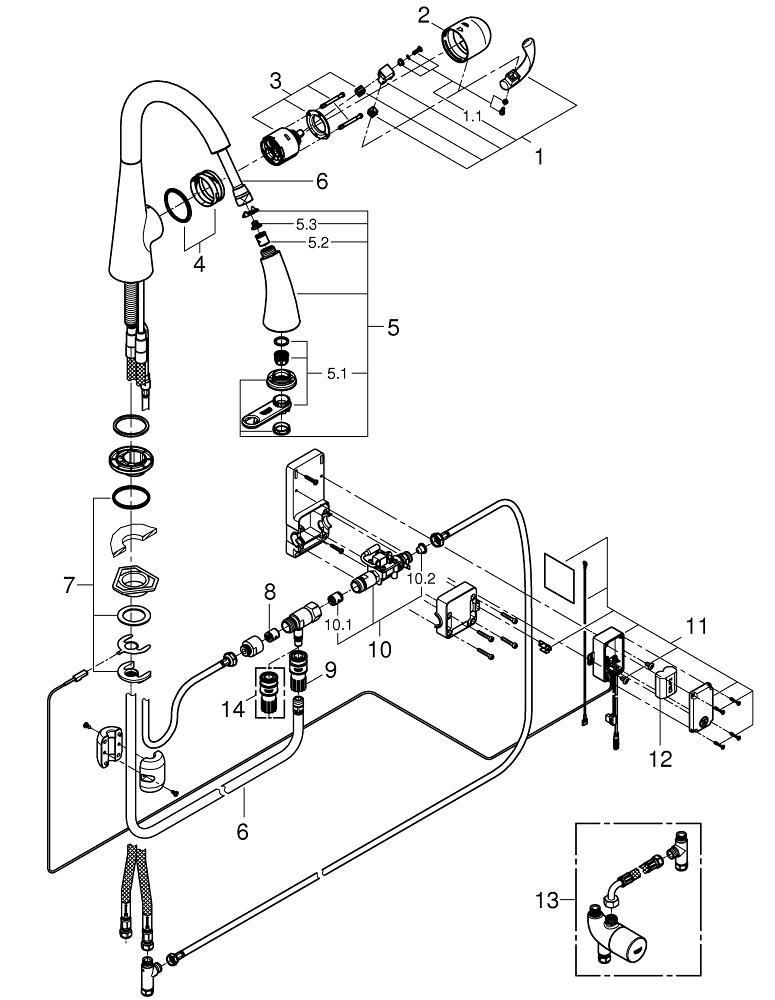

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46654DC0 |
| 1.1 | Fixing set | 46310000 |
| 2 | Cap | 46655DC0 |
| 3 | Cartridge | 46048000 |
| 4 | Guide and slide ring | 46632V00 |
| 5 | Pull out spray | 46875ND0 |
| 5.1 | Mousseur | 46711000 |
| 5.2 | Non-return valve | 08565000 |
| 5.3 | Dirt strainer | 0676800M |
| 6 | Shower hose | 46881000 |
| 7 | Shank mounting kit | 46345000 |
| 8 | Non-return valve | 08565000 |
| 9 | Snap coupling | 48220000 |
| 10 | Solenoid valve | 48213000 |
| 10.1 | Non-return valve | 08565000 |
| 10.2 | Dirt strainer | 42395000 |
| 11 | Control unit | 48214000 |
| 12 | Battery | 42886000 |
| 13 | Thermostatic scalding protection | 34507000* |
| 14 | Quick coupling | 64999000* |
