Ladylux Touch Electronic single-lever sink mixer 1/2″
Product Number
30205001
EAN
4005176343223
Colour
chrome
Product main features
- L-spout
- Touch: activation of water via skin contact
- battery supply 6 V lithium-battery, type CR-P2
- CE approved
- solenoid valve
- fixed value mixing valve
- automatic safety stop after 60 sec. (factory set)
- type of protection IP 44
- GROHE SilkMove 46 mm ceramic cartridge
- adjustable flow rate limiter
- swivel tubular spout
- swivel area 360°
- pull-out dual spray
- diverter: mousseur/SpeedClean shower jet
- automatic return to mousseur
- flexible connection hoses
- rapid installation system
- protected against backflow
Technical Product Information
CAD Data

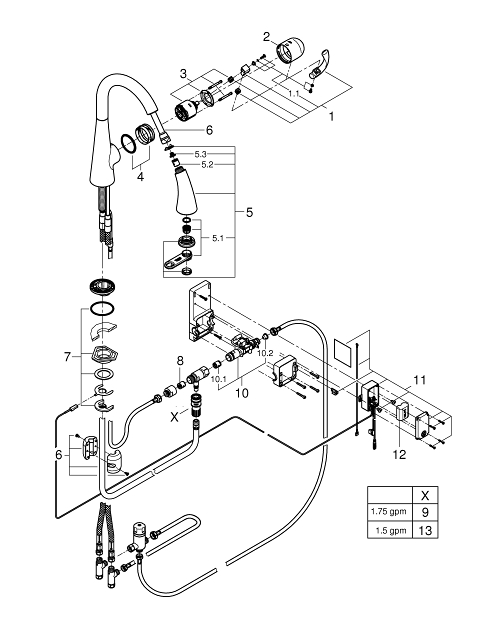

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46654000 |
| 1.1 | Fixing set | 46310000 |
| 2 | Cap | 46655000 |
| 3 | Cartridge | 46048000 |
| 4 | Guide and slide ring | 46632V00 |
| 5 | Pull out spray | 46969NC0 |
| 5.1 | Mousseur | 46711000 |
| 5.2 | Non-return valve | 08565000 |
| 5.3 | Dirt strainer | 0676800M |
| 6 | Hose for sink mixer with pull-out dual spray or mousseur | 48293000 |
| 7 | Shank mounting kit | 46345000 |
| 8 | Non-return valve | 08565000 |
| 9 | Snap coupling | 48220000 |
| 10 | Solenoid valve | 48213000 |
| 10.1 | Non-return valve | 08565000 |
| 10.2 | Dirt strainer | 42395000 |
| 11 | Control unit | 48214000 |
| 12 | Battery | 42886000 |
| 13 | Quick coupling | 64999000* |
