Grohtherm Thermostatic mixer for 1 outlet with shut off valve
Product Number
24075000
EAN
4005176465987
Colour
chrome
The Grohtherm shower mixer trim set offers safe, precise control in a sleek shape
Product main features
- set for final installation for
- GROHE Rapido SmartBox (35 600/35 604)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE Long-Life finish
- GROHE FastFixation escutcheon with covered shaft sealing and covered fixing
- metal escutcheon, retroactively 6° adjustable
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- built-in non return valves and dirt strainers
- ceramic stop valve, 120°
- flow performance: outlet B = 27 l/min, outlet C = 30 l/min
- without roughing-in set
Technical Product Information
CAD Data

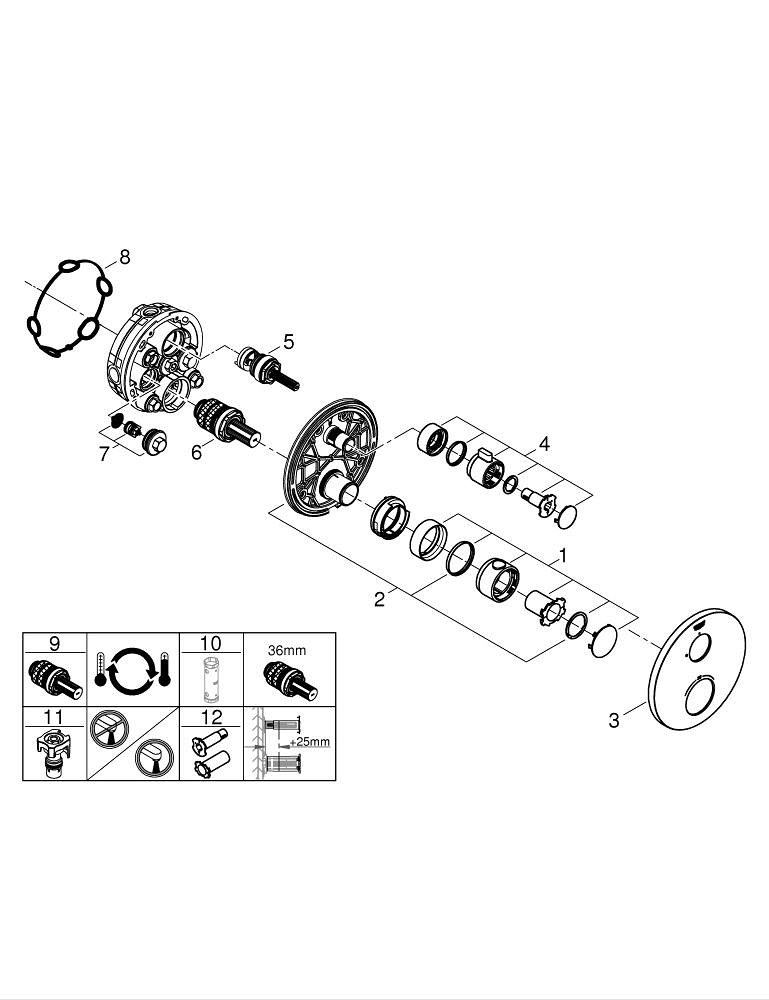

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Temperature control handle | 49082000 |
| 2 | Mounting plate | 49080000 |
| 3 | Escutcheon | 49073000 |
| 4 | Handle for shut-off valve | 49083000 |
| 5 | Aquadimmer | 49084000 |
| 6 | Thermostatic compact cartridge 3/4" | 49028000 |
| 7 | Non-return valve | 49085000 |
| 8 | Seal | 48360000 |
| 9 | GROHE TurboStat cartridge 3/4" | 49003000* |
| 10 | Socket spanner | 49059000* |
| 11 | Service stops | 1405300M* |
| 12 | Universal extension set 2-handle thermostats, 25 mm | 14058000* |
