Grohtherm SmartControl Thermostat for concealed installation with one valve
Product Number
29150LS0
EAN
4005176413544
Colour
moon white/chrome
Designed with precision and imagination, the Grohtherm SmartControl thermostat will enhance the way your bathroom looks and works
Product main features
- set for final installation for
- GROHE Rapido SmartBox (35 600/35 604)
- metal wall escutcheon with GROHE FastFixation (covered escutcheon and shaft sealing, covered fixing), retroactively 6° adjustable
- GROHE Long-Life finish
- GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
- exchangeable symbols
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE ProGrip with knurl structure
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
- built-in non return valves and dirt strainers
- cover plate in moon white acrylic glass
- without roughing-in set
- flow performance:, outlet A (to external shut-off) = 34 l/min, outlet B/C = 29 l/min
Technical Product Information
CAD Data

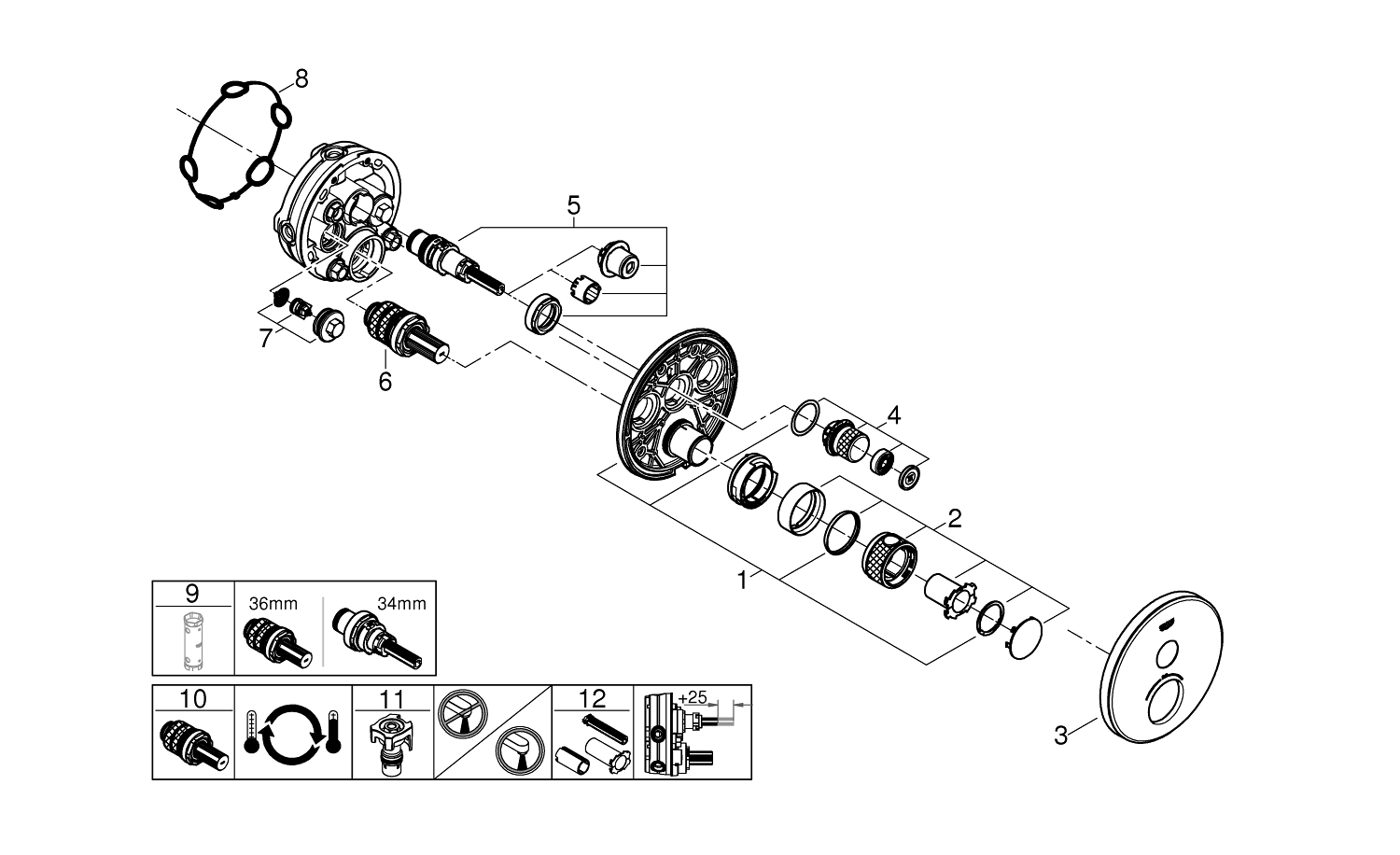

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Mounting plate | 48362000 |
| 2 | Temperature control handle | 49029000 |
| 3 | Escutcheon | 49031LS0 |
| 4 | Push button | 48361000 |
| 5 | Cartridge | 48359000 |
| 5.1 | Spindle | 49088000 |
| 6 | Thermostatic compact cartridge 3/4" | 49028000 |
| 7 | Non-return valve | 49085000 |
| 8 | Seal | 48360000 |
| 9 | Socket spanner | 49059000* |
| 10 | GROHE TurboStat cartridge 3/4" | 49003000* |
| 11 | Service stops | 1405300M* |
| 12 | Universal extension set single-lever mixers, 25 mm | 14048000* |
