Grohtherm SmartControl Thermostat for concealed installation with one valve
Product Number
29136000
EAN
4005176413346
Colour
chrome
Product main features
- set for final installation for
- GROHE Rapido SmartBox (35 601)
- metal wall escutcheon with GROHE FastFixation (covered escutcheon and shaft sealing, covered fixing), retroactively 6° adjustable
- 10 mm thin profile escutcheon
- GROHE Long-Life finish
- GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
- exchangeable symbols
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop safety button at 100°F/38°C
- GROHE SafeStop Plus temperature limiter at 115° F/46° C
- built-in non return valves and dirt strainers
- without roughing-in set
- flow performance 7.5 gpm
- optional flow reducer for CALGreen compliance included
Technical Product Information
CAD Data

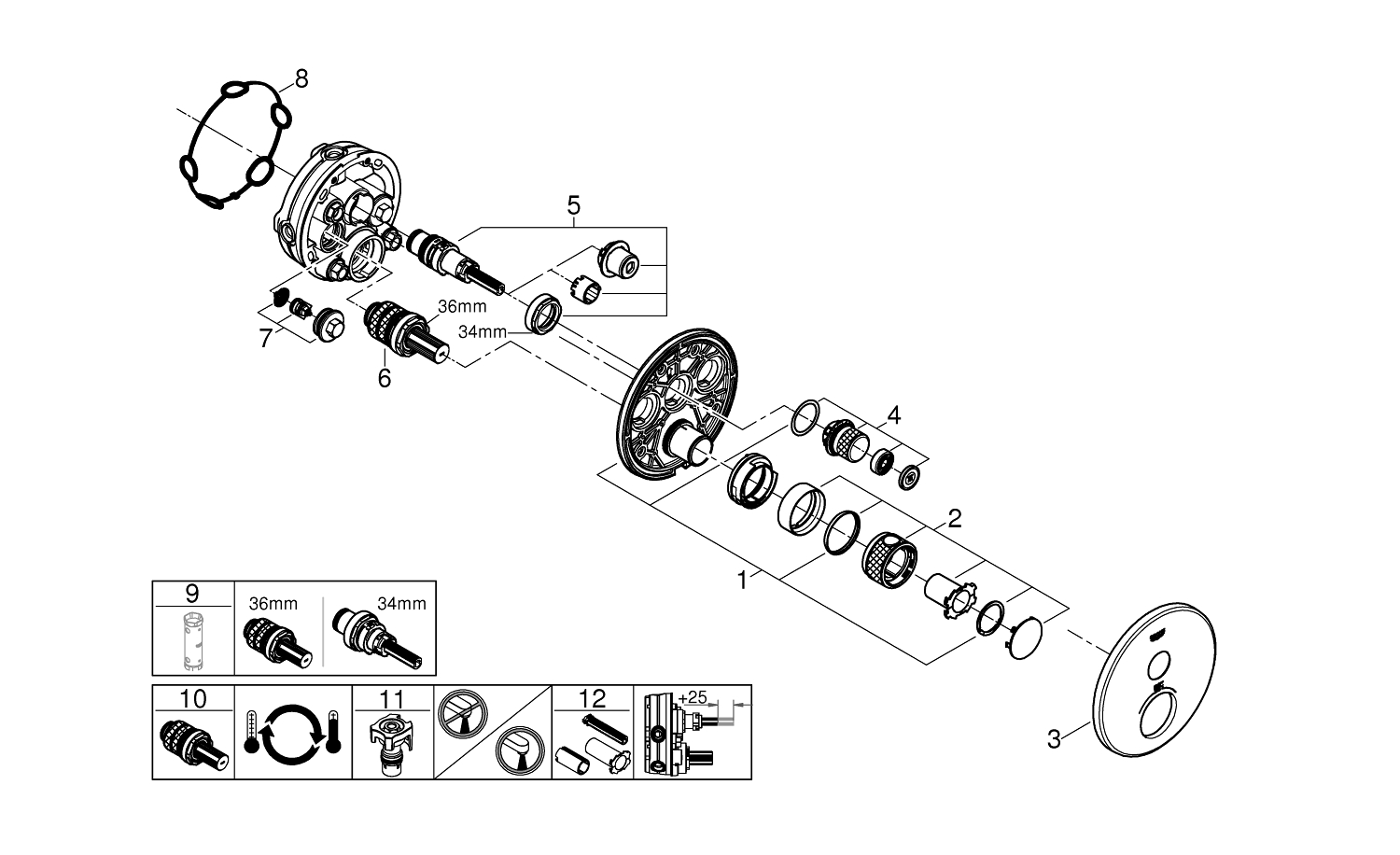

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Mounting plate | 48362000 |
| 2 | Temperature control handle | 49029000 |
| 3 | Escutcheon | 49044000 |
| 4 | Push button | 48361000 |
| 5 | Cartridge | 48359000 |
| 5.1 | Spindle | 49088000 |
| 6 | Thermostatic compact cartridge 3/4" | 49028000 |
| 7 | Non-return valve | 49085000 |
| 8 | Seal | 48360000 |
| 9 | Socket spanner | 49059000* |
| 10 | GROHE TurboStat cartridge 3/4" | 49003000* |
| 11 | Service stops | 1405300M* |
| 12 | Universal extension set single-lever mixers, 25 mm | 14048000* |
