Grohtherm 1000 Perfect shower set with Euphoria Cosmopolitan 180
Product Number
34582000
EAN
4005176313820
Colour
chrome
Product main features
- consisting of:
- Grohtherm 1000 set for final installation (19 985 000)
- GROHE Rapido T thermostatic mixer for concealed installation (35 500)
- Euphoria Cosmopolitan 180 head shower (27 491 000)
- Rainshower shower arm 286 mm (28 576)
- hand shower, wall holder, wall elbow connection and shower hose to be ordered separately
- min. recommended pressure 1.0 bar
Technical Product Information
CAD Data

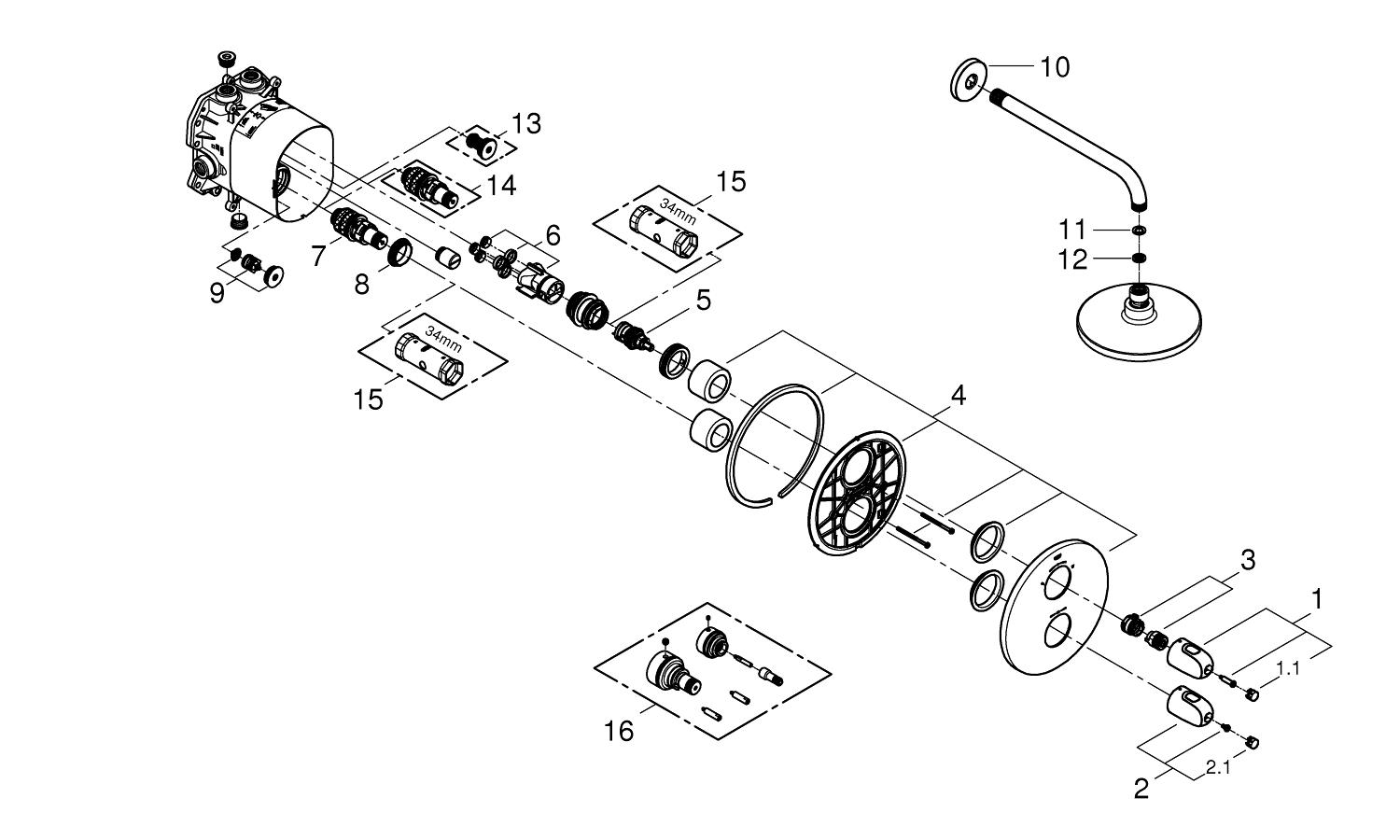

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Shut-off handle | 47976000 |
| 1.1 | Cover cap | 4797400M |
| 2 | Temperature control handle | 47973000 |
| 2.1 | Cover cap | 4797400M |
| 3 | Stop ring | 47986000 |
| 4 | Escutcheon | 47987000 |
| 5 | Aquadimmer | 47364000 |
| 6 | Adapter | 12701000 |
| 7 | Thermostatic compact cartridge 3/4" | 47483000 |
| 8 | Fitting ring | 47765000 |
| 9 | Non-return valve | 47753000 |
| 10 | Escutcheon | 11741000 |
| 11 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 12 | Dirt strainer | 48007000 |
| 13 | Safety combination (EN 1717) | 29007000* |
| 14 | Thermostatic compact cartridge 3/4" for reverse waterways | 47186000* |
| 15 | Socket spanner | 19332000* |
| 16 | Extension set 27.5 mm | 47781000* |
