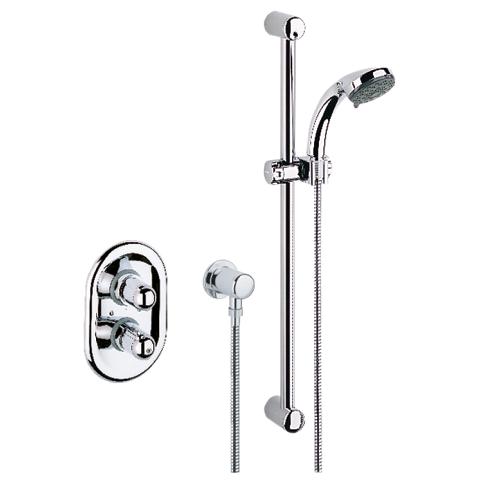

Grohmaster Grohtherm 1000 BIV
Product Number
34024000
EAN
4005176212925
Colour
chrome
Product main features
- GROHE Long-Life finish

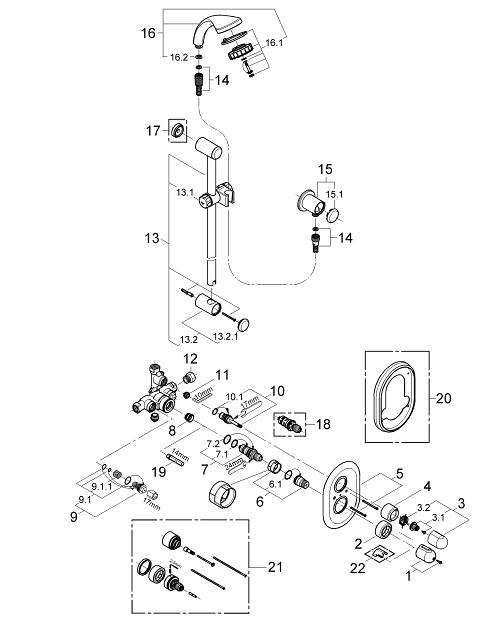

Technical Product Information
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Temperature scale handle | 47352000 |
| 2 | Sleeve | 05971000 |
| 3 | Handle for shut-off valve | 47092000 |
| 3.1 | Replacement handle connection kit | 45186000 |
| 3.1.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 3.2 | Support ring | 03070000 |
| 4 | Sleeve as of year of construction 1993 | 05111000 |
| 5 | Escutcheon | 47357000 |
| 6 | Stop ring + regulating nut | 47167000 |
| 6.1 | Sealing washer Ø 24 x Ø 2 | 0119600M |
| 7 | Thermo-element 1/2" | 47450000 |
| 7.1 | Sealing washer Ø 21 x Ø 2 | 0599900M |
| 7.2 | Sealing washer Ø 24 x Ø 2 | 0119600M |
| 8 | Seat for thermostat | 01460000 |
| 9 | Non-return valve 1/2" | 1411600M |
| 9.1 | Seal kit | 47303000 |
| 9.1.1 | Dirt strainer | 0299000M |
| 10 | Concealed headpart 1/2" | 45869000 |
| 10.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 11 | Seat | 45023000 |
| 12 | Threaded connector | 00136000 |
| 13 | Shower rail 600 mm | 28666000 |
| 13.1 | Glide element | 07659000 |
| 13.2 | Shower rail holder | 45362000 |
| 13.2.1 | Cover cap | 45363000 |
| 13.3 | Compensation disc | 45406000* |
| 14 | Shower hose | 28151000 |
| 15 | Shower outlet elbow, 1/2" | 28671000 |
| 15.1 | Cover cap | 45364000 |
| 16 | Hand shower 2 sprays | 28216000 |
| 16.1 | Dirt strainer | 0700200M |
| 17 | Compensation disc | 45406000* |
| 18 | Thermo-element 1/2 for reverse waterways | 47282000* |
| 19 | Socket spanner | 19070000* |
| 20 | Compensation ring, 20 mm | 08936000* |
| 21 | Extension 27.5 mm | 47172000* |
| 22 | Stop | 05657000* |
