Grandera Single-lever mixer with 2-way diverter
Product Number
24068IG0
EAN
4005176465857
Colour
chrome/gold
GROHE Grandera single-lever mixer trim set in chrome and gold – matchless performance lets you choose between 2 shower or bath functions with ease
Product main features
- set for final installation for
- GROHE Rapido SmartBox (35 600/35 604)
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE Long-Life finish
- GROHE FastFixation escutcheon with covered shaft sealing and covered fixing
- metal escutcheon, retroactively 6° adjustable
- metal lever
- automatic 2-way diverter
- flow performance: outlet B = 27 l/min, outlet C = 27 l/min
- without roughing-in set
Technical Product Information
CAD Data

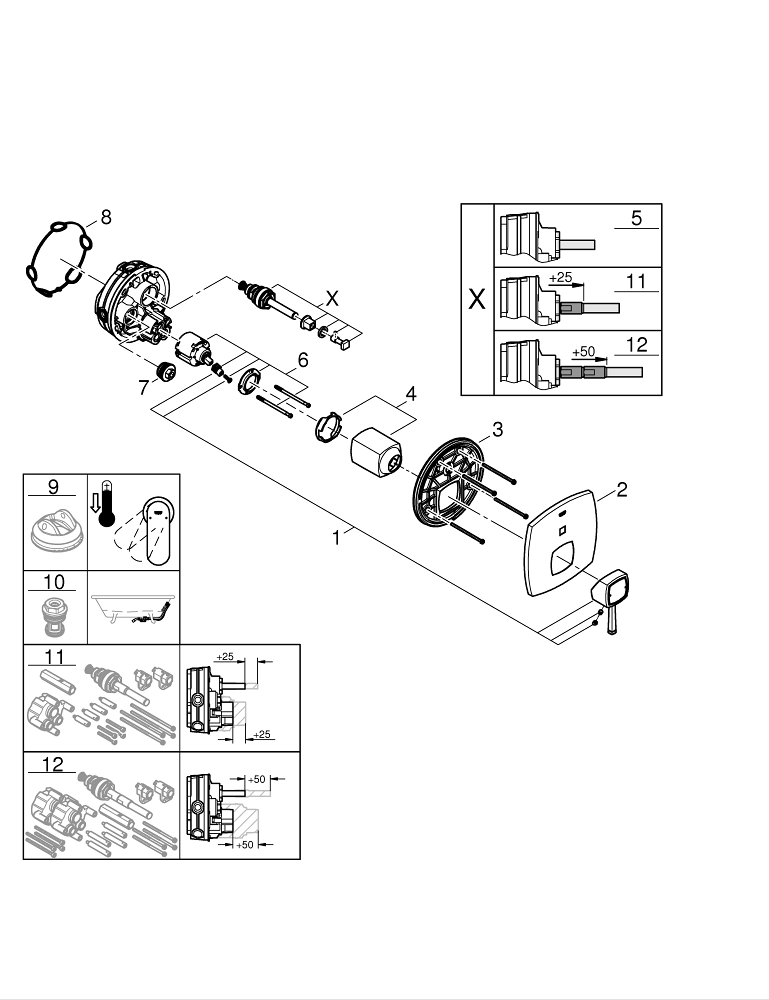

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
* Optional accessories | ||
1 | Lever | 46833IG0 |
2 | escutcheon | 48433000 |
3 | mounting plate | 48438000 |
4 | cap | 48455000 |
5 | Cartridge | 46048000 |
6 | Diverter | 48442000 |
7 | Seal | 48360000 |
8 | Non-return valve | 49085000 |
9 | Temperature limiter | 46308000* |
10 | Backflow protection combination (EN1717) | 14055000* |
