Get Single-lever basin mixer 1/2″ S-Size
Product Number
23495000
EAN
4005176308314
Colour
chrome
Product main features
- single hole installation
- metal lever
- GROHE SilkMove 35 mm ceramic cartridge
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- GROHE Long-Life finish
- mousseur
- pop-up waste set 1 1/4"
- flexible connection hoses
- GROHE FastFixation rapid installation system
- optional temperature limiter ref. no. 46 375
- noise classification I in accordance with DIN 4109
- min. recommended pressure 0.2 bar
Technical Product Information
CAD Data

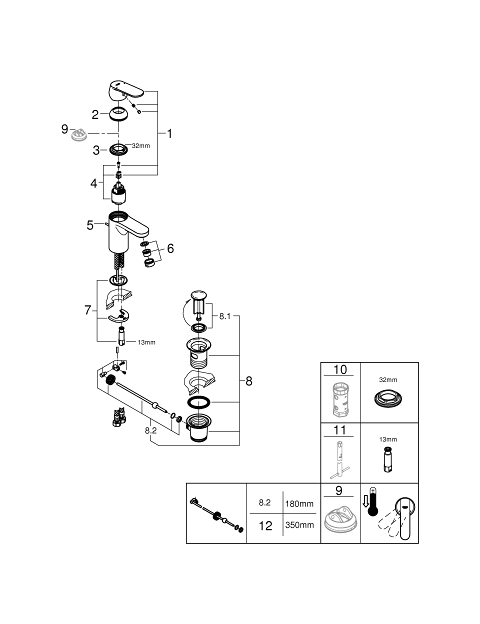

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46681000 |
| 2 | Cap | 46492000 |
| 3 | Screw coupling | 46460000 |
| 4 | Cartridge | 46374000 |
| 5 | Pop-up rod | 46739000 |
| 6 | Mousseur | 48159000 |
| 7 | Shank mounting kit | 46671000 |
| 8 | Waste set 1 1/4" | 28910000 |
| 8.1 | Plug | 07182000 |
| 8.2 | Eccentric rod | 07052000 |
| 9 | Temperature limiter | 46375000* |
| 10 | Socket spanner | 19332000* |
| 11 | Mounting wrench | 19017000* |
| 12 | Eccentric rod | 07341000* |
