Geneva Three-hole basin mixer 1/2″
Product Number
2080100A
EAN
4005176347290
Colour
chrome
Product main features
- without handles
- non swivel high spout with mousseur
- ceramic headparts 1/2", 90°
- pop-up waste set 1 1/4"
- union nut with 10.5 mm drilling
- pressure-proof flexible connection hoses between spout and side valves
- for Geneva cross and lever handles 18 733 / 18 734
- GROHE Long-Life finish
- max. flow rate 4.5 l/min (1.2 gpm)
Technical Product Information
CAD Data

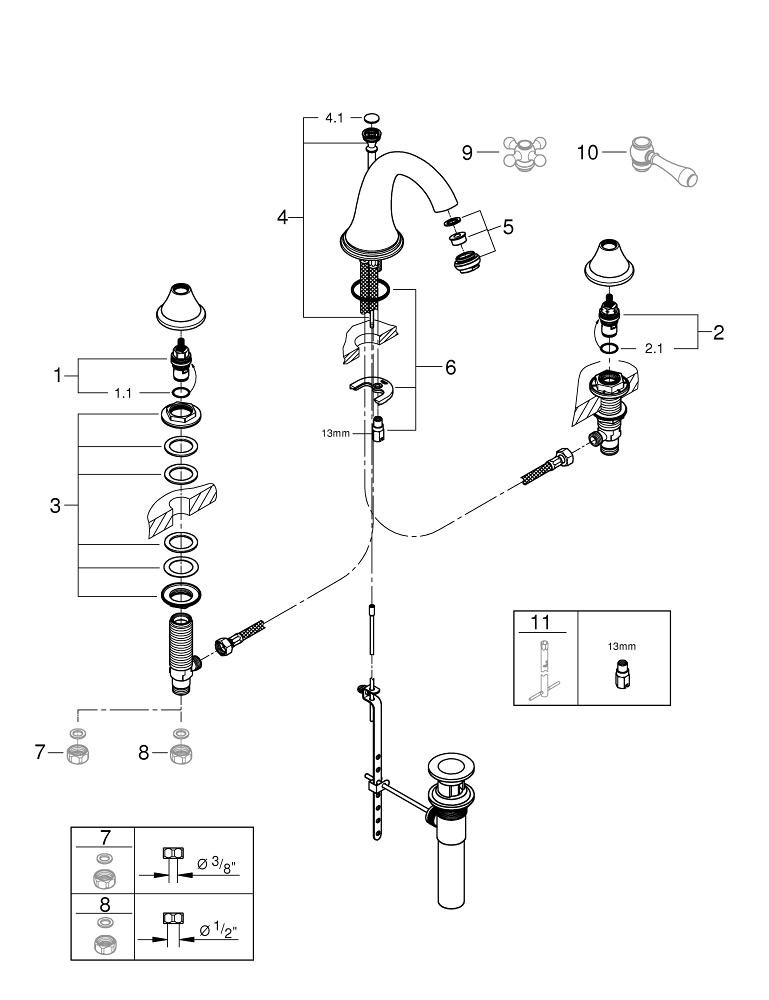

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Ceramic headpart 1/2" | 45882000 |
| 1.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 2 | Ceramic headpart 1/2" | 45883000 |
| 2.1 | O-ring Ø 18.2 x Ø 1.7 | 0392400M |
| 3 | Counter screws M28 x 1.5 | 45025000 |
| 4 | Pop-up rod | 45791000 |
| 4.1 | Marking piece | 45763L00 |
| 5 | Mousseur | 13352000 |
| 6 | Shank fastening assembly | 46249000 |
| 7 | Coupling nut 1/2" | 1290100M* |
| 7.1 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 8 | Coupling nut 1/2" x 14.5 mm | 12902000* |
| 9 | Cross handle | 18733000* |
| 10 | Lever handle | 18734000* |
| 11 | Mounting wrench | 19017000* |
