Flushing cistern for WC
Product Number
38592000
EAN
4005176808890
Product main features
- 6 - 9 l adjustable
- concealed installation
- 0.82 m installation height
- interruptible flush cycle
- front or top actuation
- water supply from left/right or top
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- 415 x 410 x 360 mm
- flexible connecting hose Ø 3/8"
- fixing brackets
- flush pipe
- shortable inspection shaft incl. protection during construction phase
- without flush plate/actuation
- GROHE Water Saving - Less water, perfect flow
Technical Product Information

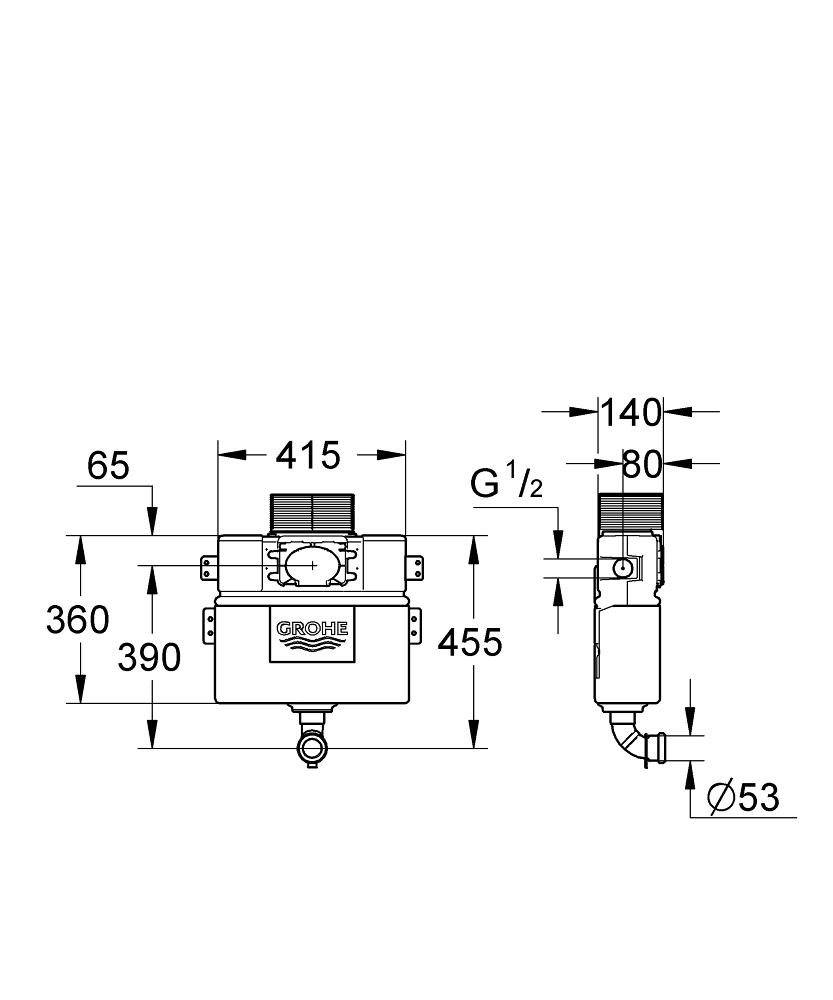

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Connecting hose | 42206000 |
| 2 | Support device | 42195000 |
| 3 | Filling valve | 37095000 |
| 3.1 | Lever | 43734000 |
| 3.1.1 | Seal | 4377000M |
| 3.2 | Valve head | 43536000 |
| 3.3 | Membrane | 4375800M |
| 3.4 | Screw cap | 43735000 |
| 3.5 | Valve float, 5 pcs. | 4379100M |
| 3.6 | Set of seals | 43722000* |
| 4 | Inspection shaft for flushing cistern | 42326000 |
| 5 | Discharge valve AV1 complete | 42314000 |
| 5.1 | Pneumatic hose | 42319000 |
| 5.2 | Seal | 42310000 |
| 5.3 | Valve seat for GD2 | 42315000 |
