Eurostyle Single-lever bath mixer 3/4″
Product Number
23573003
EAN
4005176334375
Colour
chrome
Product main features
- wall mounted
- loop metal lever
- GROHE SilkMove 35 mm ceramic cartridge
- with temperature limiter
- GROHE Long-Life finish
- adjustable flow rate limiter
- automatic diverter: bath/shower
- mousseur
- shower outlet 1/2" with integrated non-return valve
- without straight unions
- centre distance 153 mm
- protected against backflow
Technical Product Information
CAD Data

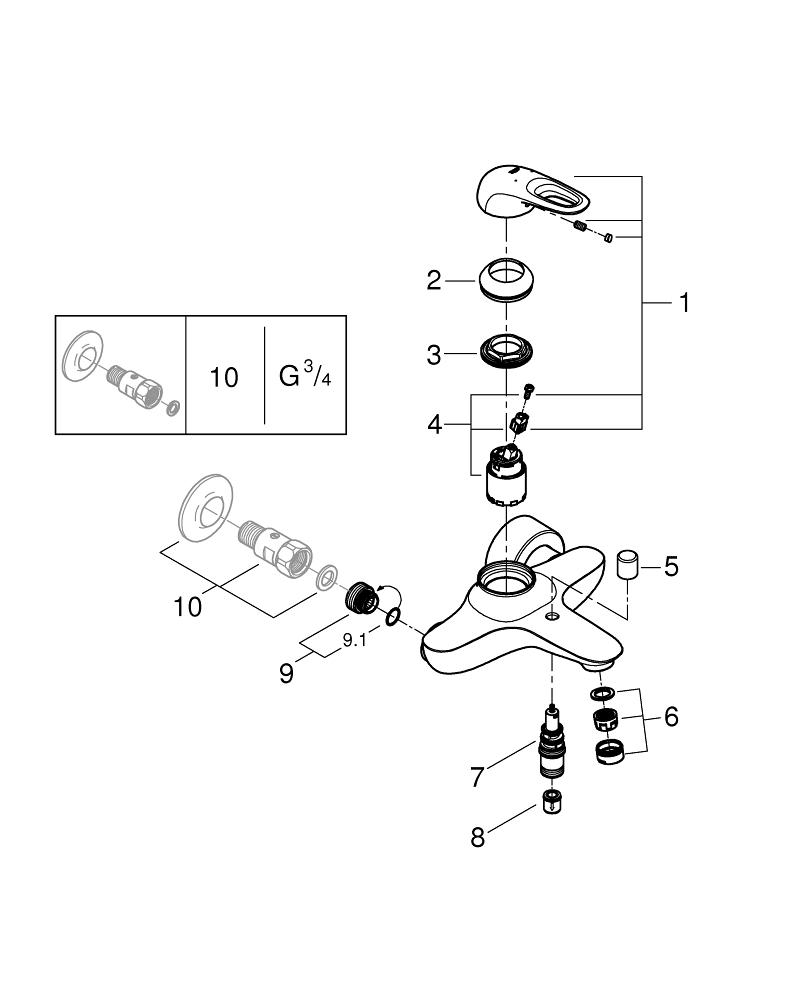

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46940000 |
| 2 | Cap | 46436000 |
| 3 | Screw coupling | 46460000 |
| 4 | Cartridge | 46374000 |
| 5 | Diverter knob | 64309000 |
| 6 | Mousseur | 13952000 |
| 7 | Diverter | 65655000 |
| 8 | Non-return valve | 48276000 |
| 9 | Screw connection | 46139000 |
| 9.1 | O-ring ø 17 x ø 2 | 0305500M |
| 10 | Straight union, lockable | 12065000* |
