Eurosmart Single-lever bidet mixer 1/2″ S-Size
Product Number
32928001
EAN
4005176827686
Colour
chrome
Product main features
- single hole installation
- metal lever
- GROHE SilkMove 35 mm ceramic cartridge with Eco-Override-Stop and cold start function
- GROHE Long-Life finish
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- ball-joint mousseur
- pop-up waste set 1 1/4"
- flexible connection hoses
- rapid installation system
- optional temperature limiter
Technical Product Information
CAD Data

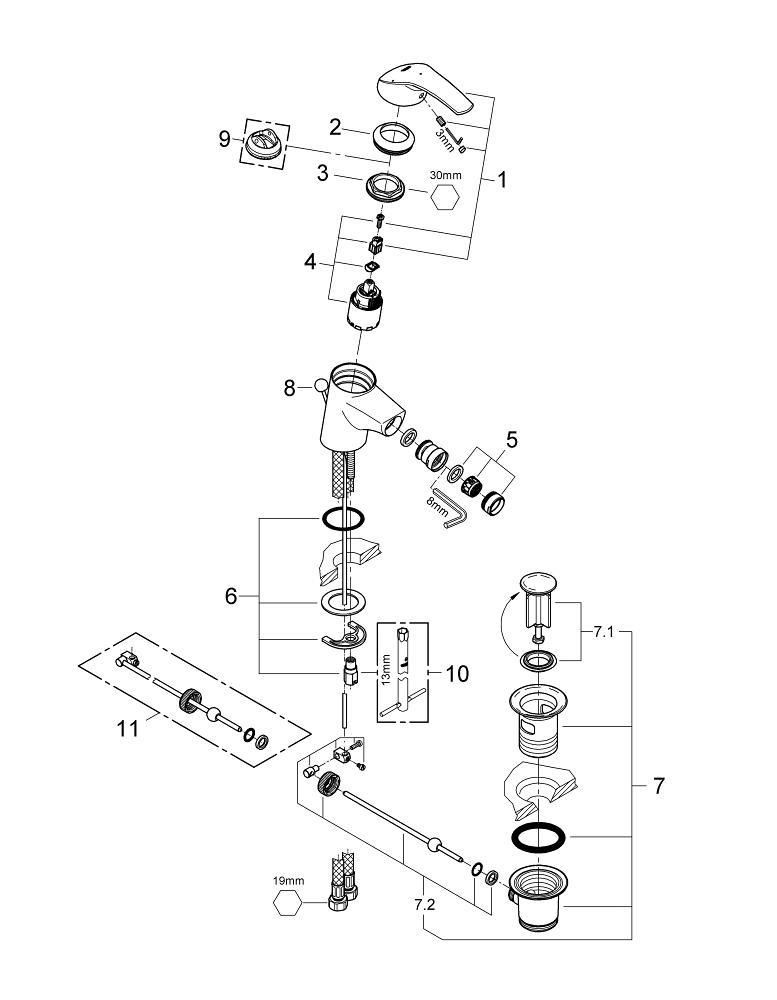

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46826000 |
| 2 | Cap | 46436000 |
| 3 | Screw coupling | 46460000 |
| 4 | Cartridge | 46824000 |
| 5 | Mousseur | 13929000 |
| 6 | Shank mounting kit | 46249000 |
| 7 | Waste set 1 1/4" | 28910000 |
| 7.1 | Plug | 07182000 |
| 7.2 | Eccentric rod | 07052000 |
| 8 | Pop-up rod | 06329000 |
| 9 | Temperature limiter | 08791000* |
| 10 | Mounting wrench | 19017000* |
| 11 | Eccentric rod | 07341000* |
