Eurosmart Cosmopolitan Single-lever bath mixer 1/2″
Product Number
32836000
EAN
4005176874758
Colour
chrome
Product main features
- single hole installation
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge with Eco-Override-Stop
- GROHE Long-Life finish
- adjustable flow rate limiter
- adjustable minimum flow rate approx. 2.5 l/min
- automatic diverter: bath/shower
- mousseur
- integrated non-return valve in the shower outlet 1/2"
- flexible connection hoses
- protected against backflow
- optional temperature limiter ref. no. 46 308
Technical Product Information
CAD Data

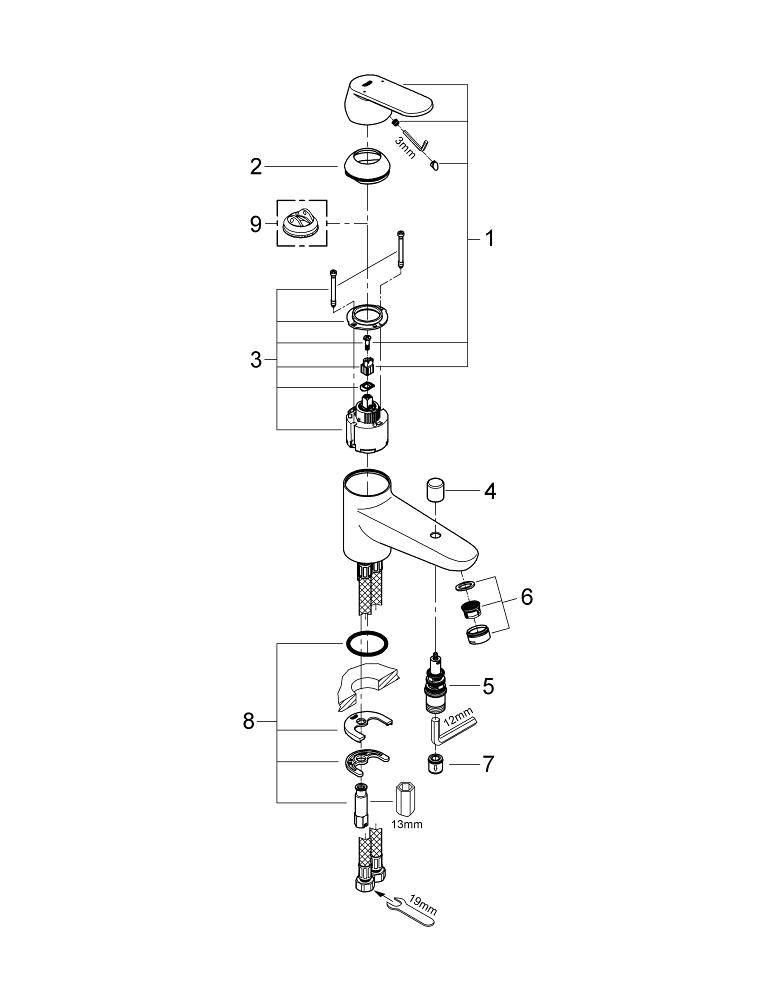

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46685000 |
| 2 | Cap | 46570000 |
| 3 | Cartridge | 46588000 |
| 4 | Diverter knob | 48022000 |
| 4.1 | Diverter knob | 64309000 |
| 5 | Diverter | 65655000 |
| 6 | Mousseur | 13941000 |
| 7 | Non-return valve | 08565000 |
| 8 | Shank mounting kit | 46671000 |
| 9 | Temperature limiter | 08791000* |
